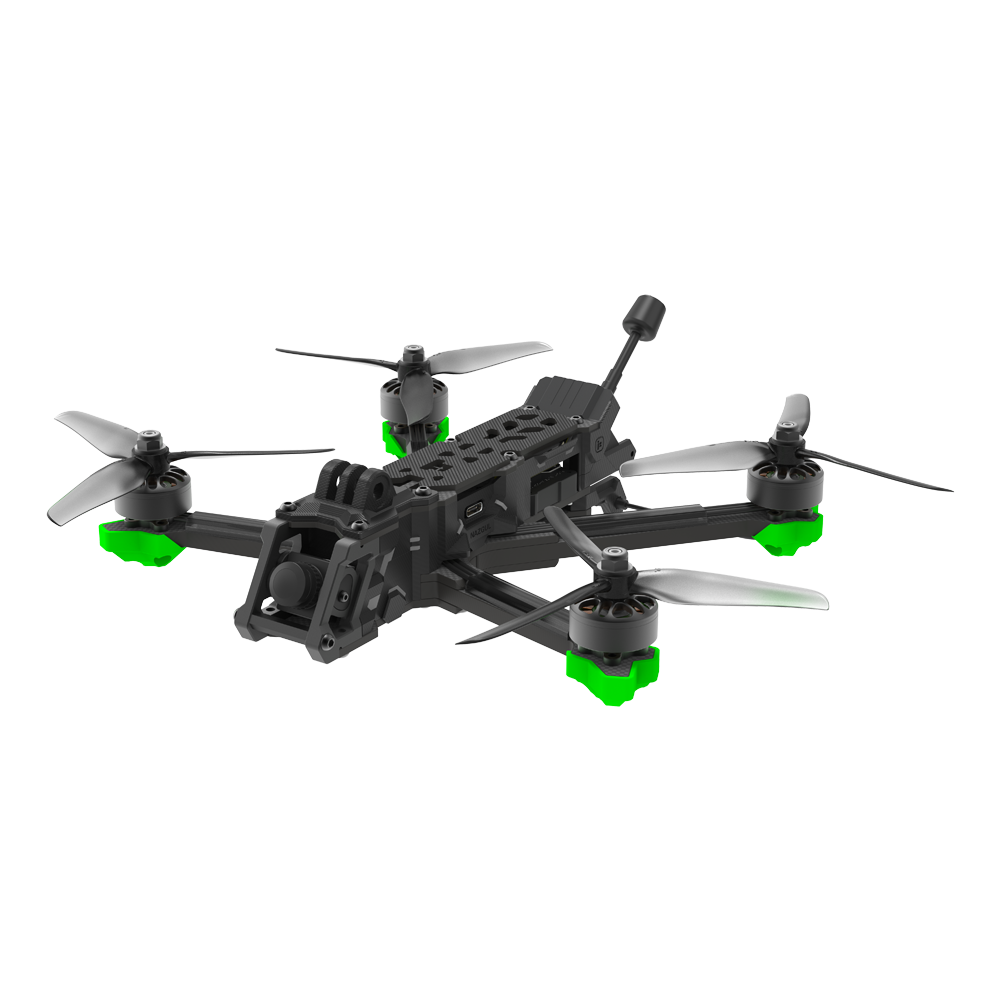

iFlight Nazgul5 Evoque F5 F5D V2 - DeadCat GPS HD/Analog 4S/6S 5 Inch FPV Racing Drone - Ideal for Fast-Paced Aerial Competitions

Current price £461.99
Original price £632.99
Original price £588.99 - Original price £1,118.99
Original price £632.99
£461.99 - £800.99
Current price £461.99
  FREE 3-7 Day Tracked Delivery     Easy 30 Day Returns
Availability:
in stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Availability:
Out of stock
Version: Analog
Voltage: 6S
Receiver: ELRS 2.4GHz

Dispatch & Delivery

Usually dispatches within 24 hours.
Free 3-7 Day UK Tracked Delivery.

Returns

This product qualifies for our 30 day return policy.

Rated Excellent

Shopsta is committed to outstanding customer service. That's why we're rated 'Excellent' on Trustpilot.

PayPal Icon
Mastercard Icon
Visa Icon
Apple Pay Icon
Shop Pay Icon
Google Pay Icon
Amex Icon
Klarna Icon

Product Description:

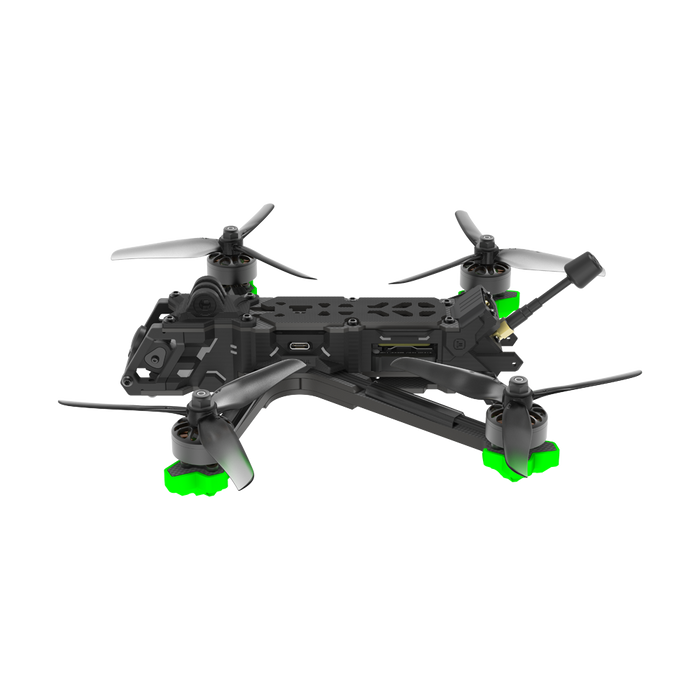

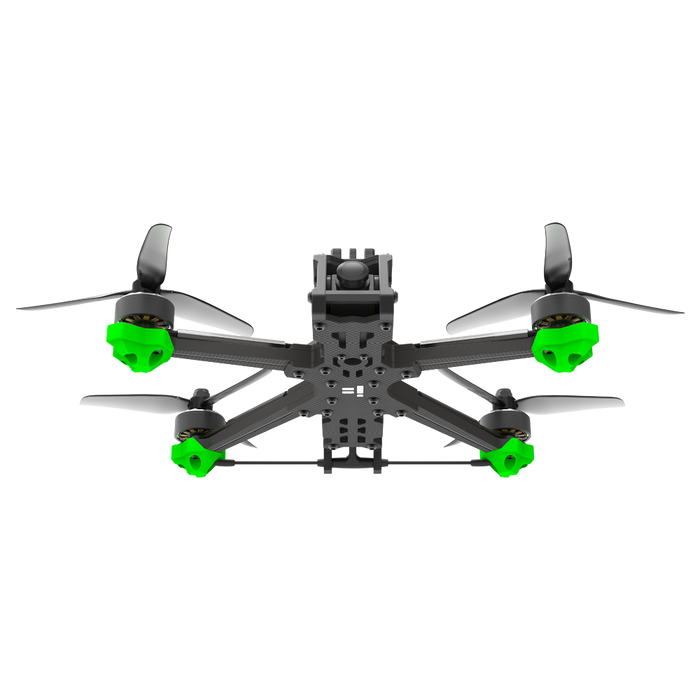

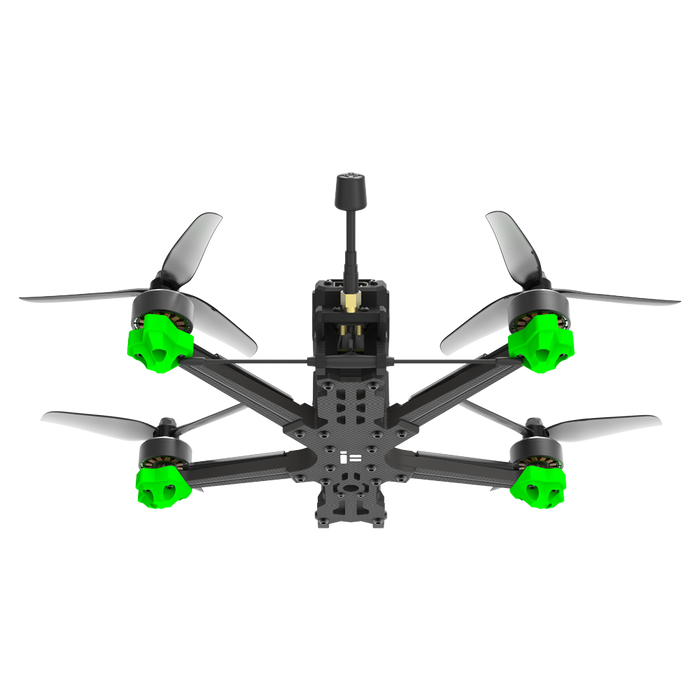

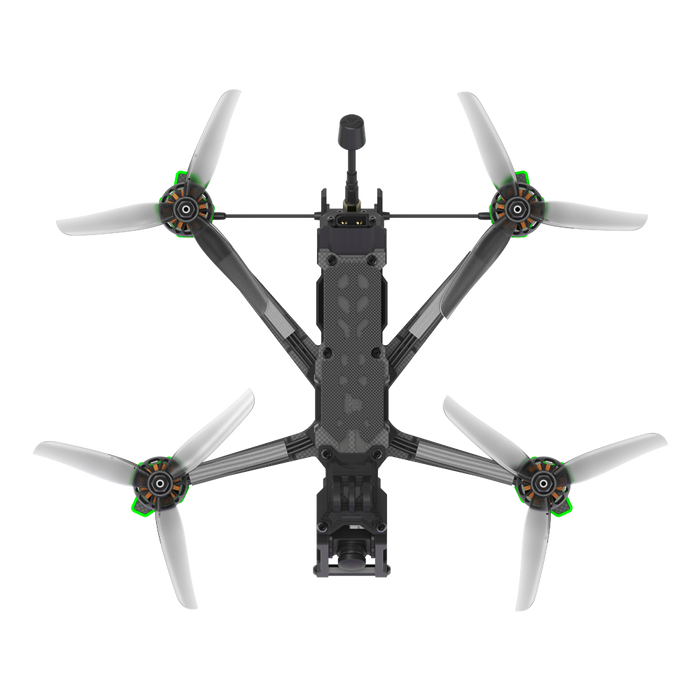

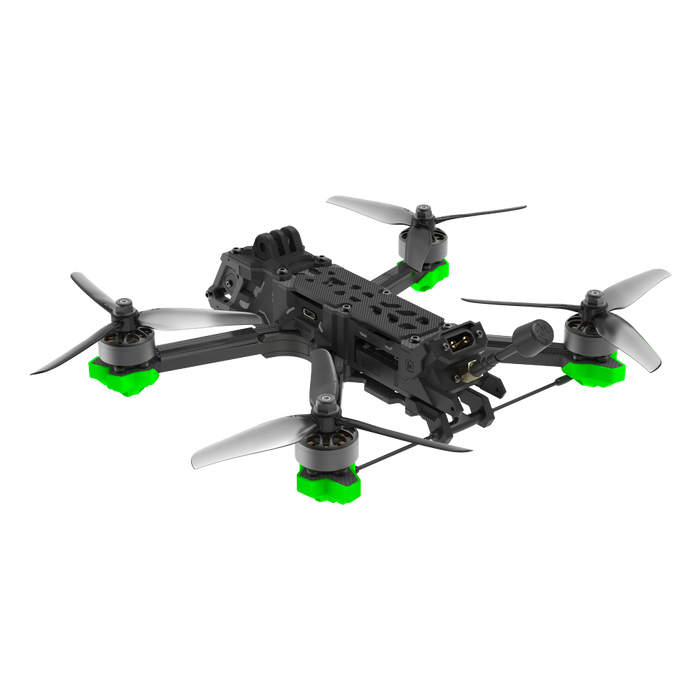

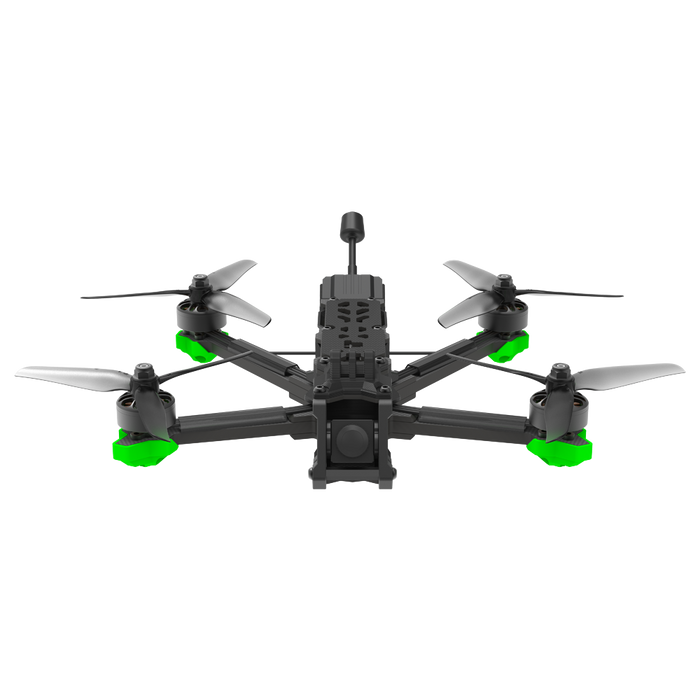

Introducing the Evoque F5 V2 FPV Drone

Welcome to the world of high-performance FPV flying with the Evoque F5 V2 Drone! This top-notch drone comes with upgraded features and a stylish new design. Whether you're a beginner or an experienced pilot, the Evoque F5 V2 offers an unparalleled flying experience. Choose between the Analog and HD versions, and let your drone adventure begin!

Features and Specifications

Evoque F5 V2 Drone Overview:

  • Available in Analog and HD versions
  • Optional 4S or 6S voltage
  • Max speed of 130 Km/h (manual mode)
  • Diagonal distance of 225 mm
  • Maximum takeoff altitude of 5000 m
  • Max hover time of approximately 8 minutes
  • Maximum flight distance of 5 km
  • Wind speed resistance up to 100 Km/H (Level 5)
  • Operating temperature range of -10° to 40° C (14° to 104° F)
  • Single antenna for reliable connectivity

Powerful Flight Controller and ESC:

  • BLITZ Mini F7 Flight Controller with STM32 F722 MCU and BMI270 Gyro
  • BLITZ Mini E55 4IN1 ESC supporting 2-6S LiPo input
  • 55 Amp constant current, 60 Amp burst current

High-Quality Motors and VTX & Camera System:

  • XING-E Pro 2207 Motor with 2750KV (4S version) and 1800KV (6S version)
  • HD version features CADDX Nebula Pro Vista HD Digital System
  • Analog version includes BLITZ Whoop 1.6W VTX and RaceCam R1 Mini 1200TVL 2.1mm lens FPV Camera

GPS and Compass Module for Precision Flying:

  • M8Q-5883 GPS with 72 channels
  • QMC5883L Compass module

Package Includes:

  • 1 x Nazgul5 Evoque F5 V2 F5D HD/Analog FPV Drone (Deadcat)
  • 1 x GPS
  • 4 x Nazgul F5 Prop
  • 2 sets of Battery Pads
  • 4 x Battery straps
  • 1 x Screws bag

The Evoque F5 V2 Drone provides both beginners and seasoned pilots with an unparalleled FPV flying experience. Don't miss the opportunity to test your skills and explore the skies with this incredible drone!

Product Specifications

Evoque F5 F5D V2 Analog
Weight: 445grams
Takeoff Weight: Approx. 610 g
Dimensions (L×W×H): 190×136×36 mm
Diagonal Distance: 225 mm
Max Speed: 130 Km/h (Manual Mode)
Maximum Takeoff Altitude: 5000 m
Max Hover Time: Approx. 8 mins
Maximum Flight Distance: 5 km
Max Wind Speed Resistance: 100 Km/H (Level 5)
Operating Temperature Range: -10° to 40° C (14° to 104° F)
Antennas: Single Antennas

FC // BLITZ Mini F7 Flight Controller (HD & Analog)

( Link)

MCU: STM32 F722
Gyro: BMI270
Barometer: DPS310
OSD Chip: AT7456
Flash: 16MB (Blackbox flash)
UARTS: 6
Motor outputs: 4x (SH1.0 connector)
I2C serial: SDA / SLA pads
Smartaudio / IRC Tramp VTX protocol supported
LED controller: Yes
Beeper pad: Yes
Firmware target: IFRC-IFLIGHT_BLITZ_F722
Mount pattern: 20x20 mm / 4mm PCB hole diameter, silicon grommets for M3 screws
Dimensions: 30.5x27 mm
Weight: 5g

ESC // BLITZ Mini E55 4IN1 ESC (HD & Analog)

( Link)

- DIMENSION: 35*42MM
- MOUNTING HOLES: 20*20MM/Φ4MM
- WEIGHT: 11.3G
- SUPPORTS 2-6S LIPO INPUT
- MCU: G071
- CONSTANT: 55 AMPS
- BURST: 60 AMPS
- CURRENT SENSOR: YES
- BEC: NO
- CURRENT RATE: 100
- SUPPORTS: DSHOT DSHOT150/300/600/MULTISHOT/ ONESHOT ETC.
- FIRMWARE: BLHELI 32

- TARGET: IFLIGHT_BLITZ_G1

XING-E Pro 2207 Motor

( Link)

4S Version: 2207 2750KV

6S Version: 2207 1800KV

VTX & Camera (HD) CADDX Nebula Pro Vista HD Digital System
VTX & Camera ( Analog)

VTX:

Product Name: BLITZ Whoop 1.6W VTX
Input voltage: 7V~34V
Interface: MMCX
Power levels: PIT/25mW/400mW/800mW/1600mW
Channels: 40 (including Raceband)
Mounting pattern: 30.5x30.5mm/Φ3
Lightweight: 18.9g (excluding antenna)
VTX telemetry: IRC Tramp
Betaflight IRC Tramp Configuration: Please download the attached VTX table for Betaflight!
RC Tramp VTX table values: 25mW/400mW/800mW/1600mW


Camera:

RaceCam R1 Mini 1200TVL 2.1mm lens 19*19 FPV Camera
