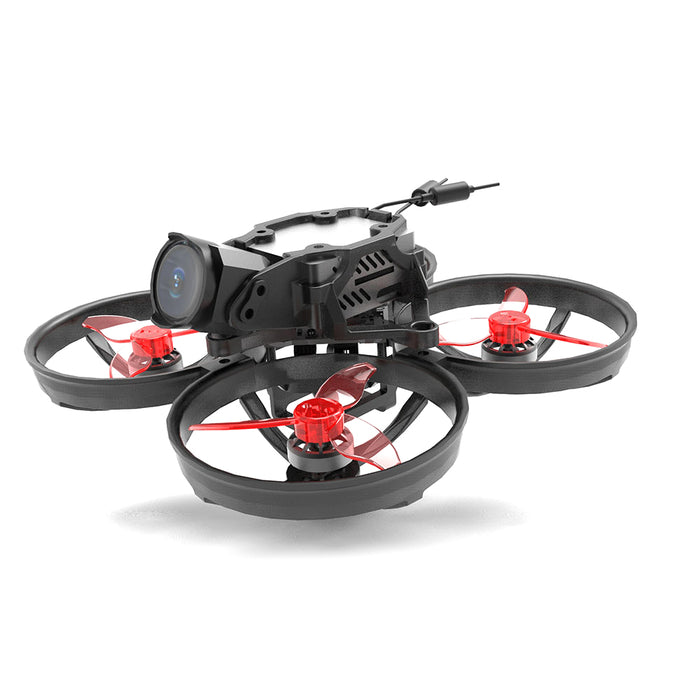

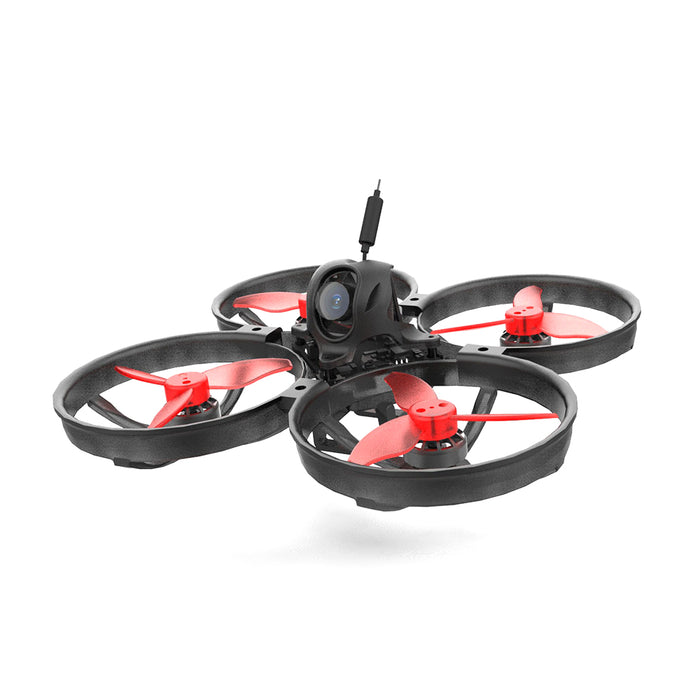

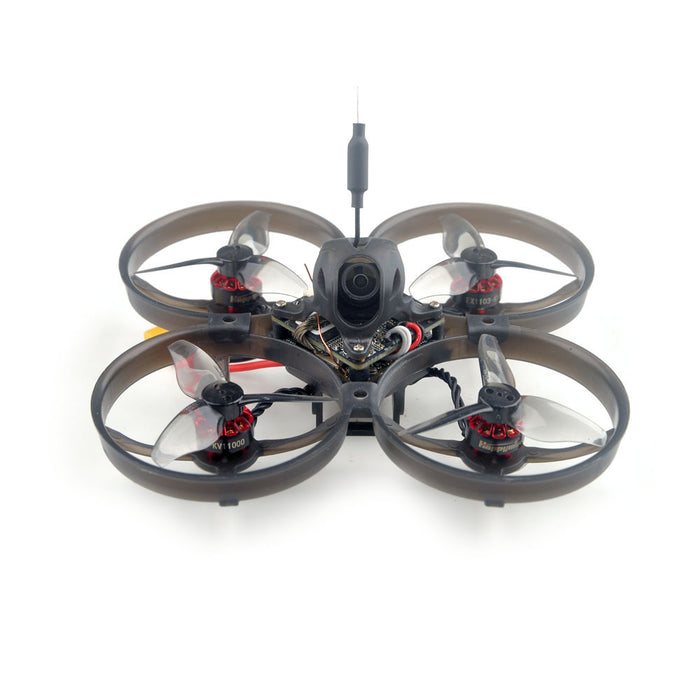

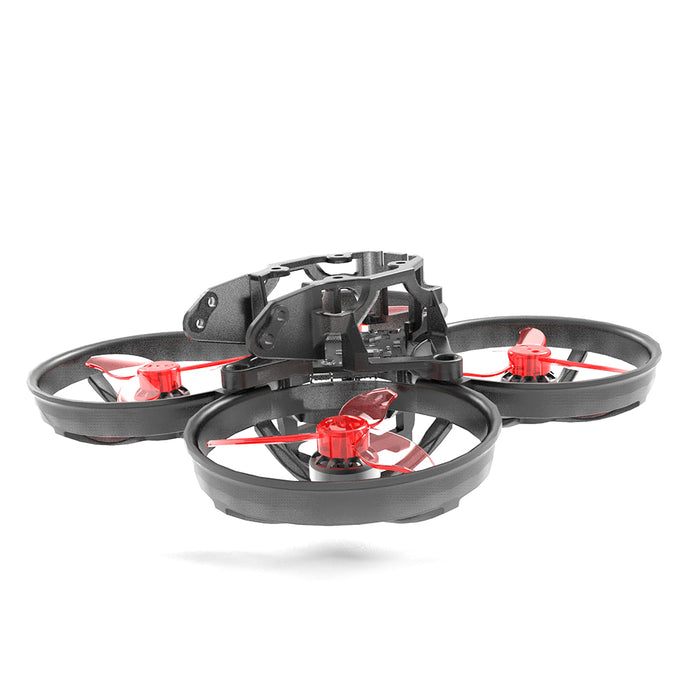

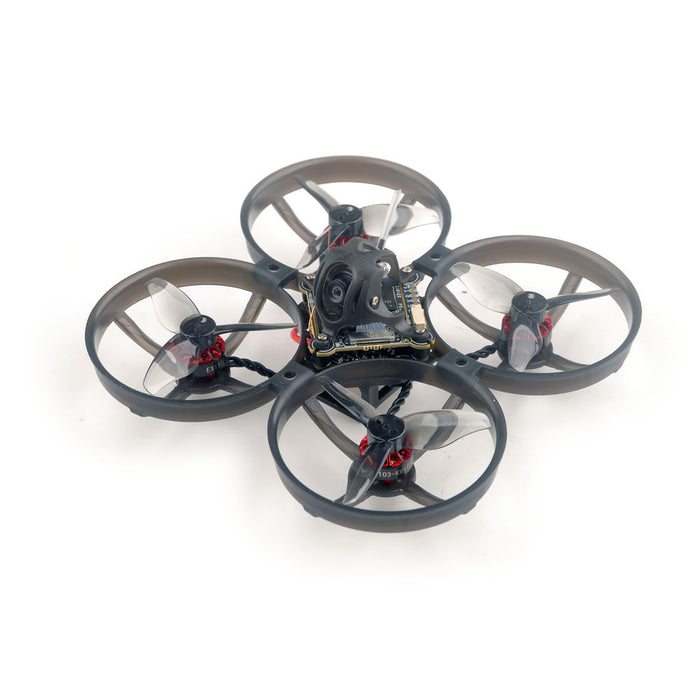

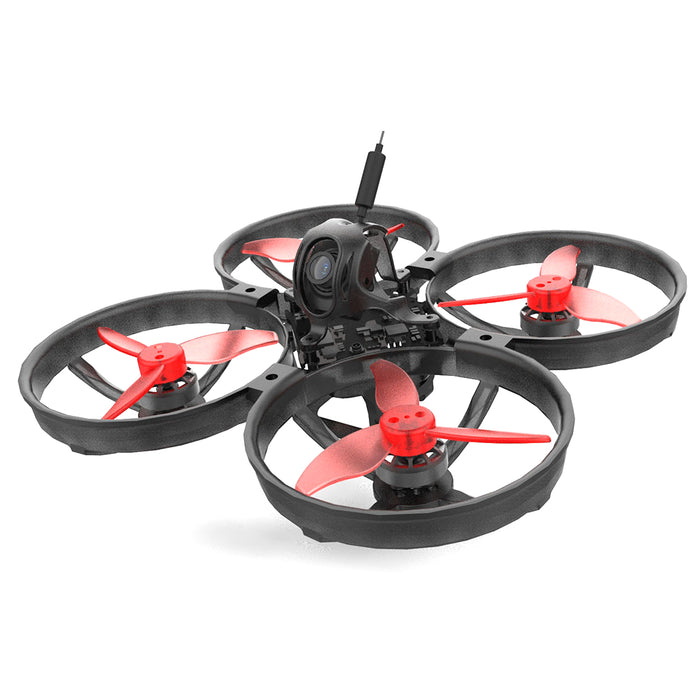

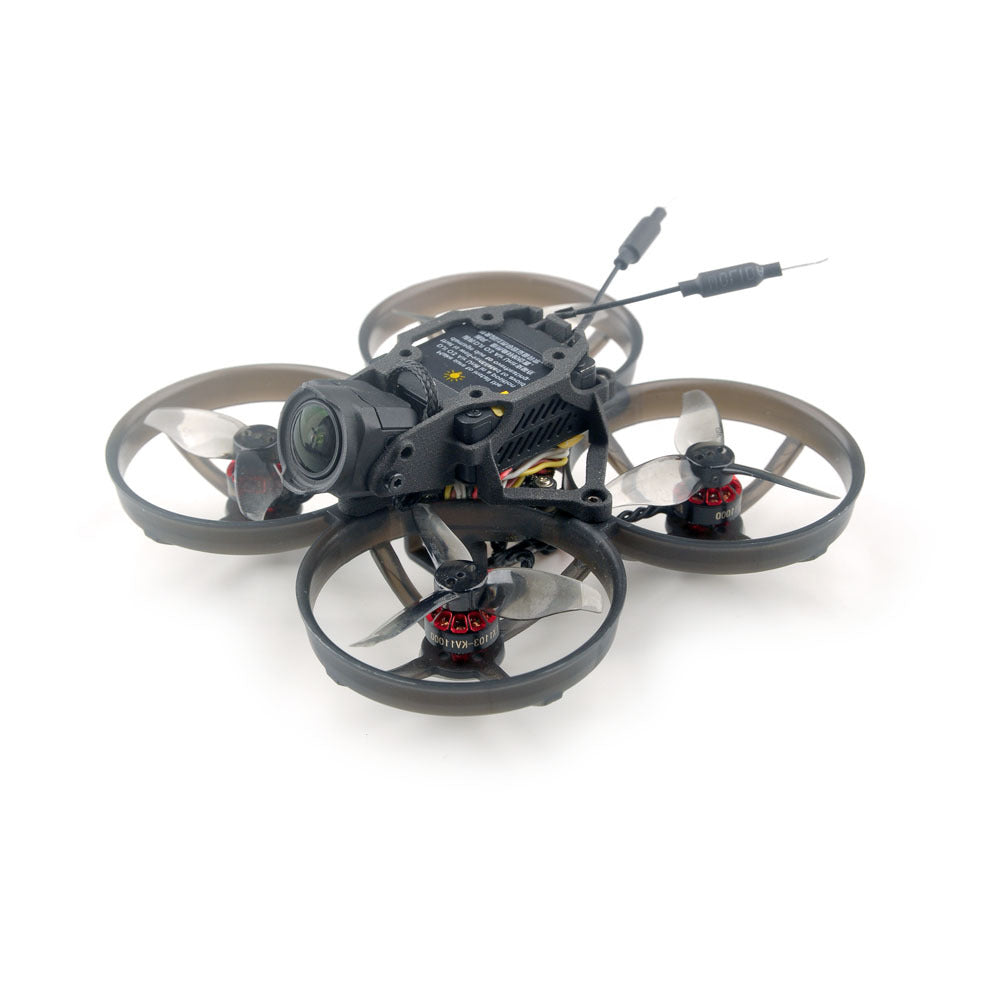

Introducing the Mobula8 Digital HD Micro FPV Whoop
Experience the thrill of high-definition FPV flying with the Mobula8 Digital HD Micro FPV Whoop, a cutting-edge drone designed to provide you with unparalleled video quality and performance. This compact and lightweight drone comes packed with advanced features, such as a dedicated flight controller, UART ExpressLRS receiver, brushless motor, and Gemfan 2023 propellers, offering a smooth and enjoyable flight experience. Choose from multiple VTX options, such as DJI O3, Walksnail Avatar, and HDZERO VTX, to customize your FPV experience according to your preferences.
Features and Specs
Digital HD FPV Experience
Get ready for crystal-clear video quality and immersive flying experience with the Mobula8 Digital HD FPV Whoop. The drone supports multiple VTX options, including DJI O3, Walksnail Avatar, and HDZERO VTX, ensuring high-definition video transmission and smooth flight performance.
Powerful and Smooth Flight Performance
Equipped with an EX1103 11000KV motor, Gemfan Hurricane 2023 tri-blade propellers, and a 1-2S LiPo battery, the Mobula8 delivers powerful performance for rapid and agile maneuvers. Combined with the dedicated CrazyF405 ELRS HD flight controller and UART ExpressLRS receiver, you can enjoy a seamless and engaging flying experience.
Built-in Gyroflow and PID Tune Blackbox
With an 8MB built-in blackbox, you can easily monitor and optimize your drone's performance, making adjustments to its gyroscope and PID tuning for a smoother, more stable flying experience.
Onboard 12A 4in1 BLheli_S ESC
The ESC (Electronic Speed Controller) provides consistent power to the motors and supports 12A continuous peak 15A (3 seconds) currents, allowing the Mobula8 to perform quick, precise movements and avoid obstacles mid-flight.
UART ExpressLRS Receiver
The built-in UART ExpressLRS 2.4GHz receiver ensures a stable, long-range connection with low latency, providing you with accurate control and maintaining a consistent flight experience even at long distances.
Customize your Mobula8 Digital HD Micro FPV Whoop with various camera and VTX options like DJI O3, Walksnail Avatar, and HDZERO, or opt for the Lite Version with no VTX and camera if you prefer to personalize your drone according to your specific needs and preferences.
- Mobula8 Frame x1
- CrazyF4HD ELRS flight controller firmware target: BETAFLIGHTF4 x1
- EX1103 KV11000 brushless motor x1
- Gemfan Hurricane 2023 tri-blade propellers(4cw+4ccw) x1
- Option1: DJI O3 Air unit x1
- Option2: Walksnail avatar HD Mini 1S lite kit x1
- Option3: HDZERO Whoop Lite bundle x1
- Option4: No VTX and camera version x1
- Canopy x1
- Screw driver x1
Get ready to elevate your FPV flying experience with the Mobula8 Digital HD Micro FPV Whoop – a fantastic combination of performance, quality, and customization, providing you with an unmatched, high-definition aerial adventure!
|Mode: EX1103 11000KV
Center Hole Dia:1.5mm
|MCU: STM32F405RGT6 (168MHZ, 1Mbyte FLASH)
GYRO Sensor: BMI270 (SPI connection)
Mount hole size: 25.5mm*25.5mm
Power supply: 1-2S battery input (DC 2.9V-8.7V)
Built-in 12A(each) Blheli_S 4in1 ESC
Built-in Serial ExpressLRS 2.4G
Built-in BMP280 Barometer
Built-in 8MBp blackbox
Built-in voltage meter sensor , voltage meter scale 110
Built-in current meter sensor , current meter scale 470
Onboard 4in1 ESC
|Power supply: 1-2S LiPo/LiPo HV
Current: 12A continuous peak 15A (3 seconds)
Support BLHeli_S Bluejay firmware
Factory firmware: Bluejay ESC V0.19
Firmware target: Z-H-30
Default protocol: DSHOT300
When use 1s battery and high KV 0702/0802 motors, should set startup power to 1100/1200
ExpressLRS 2.4GHz Receiver:
|Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz
RF Frequency: 2.4GHz
Antenna: enameled copper wire 31mm length
Telemetry output Power: <12dBm
Default firmware version: ExpressLRS V3.0.1
Firmware target: HappyModel EP 2400 RX
Could update firmware via ExpressLRS configurator
|DJI O3 Version
|VTX & Camera: DJI O3 Air Unit
Works with DJI FPV Goggles V2, DJI Goggles 2, and DJI FPV Remote Controller 2
Camera: Avatar lite camera
VTX: Avatar mini 1s module
|HDZero Nano Lite Camera & HDZero Whoop Lite VTX
|NO VTX, NO Camera
