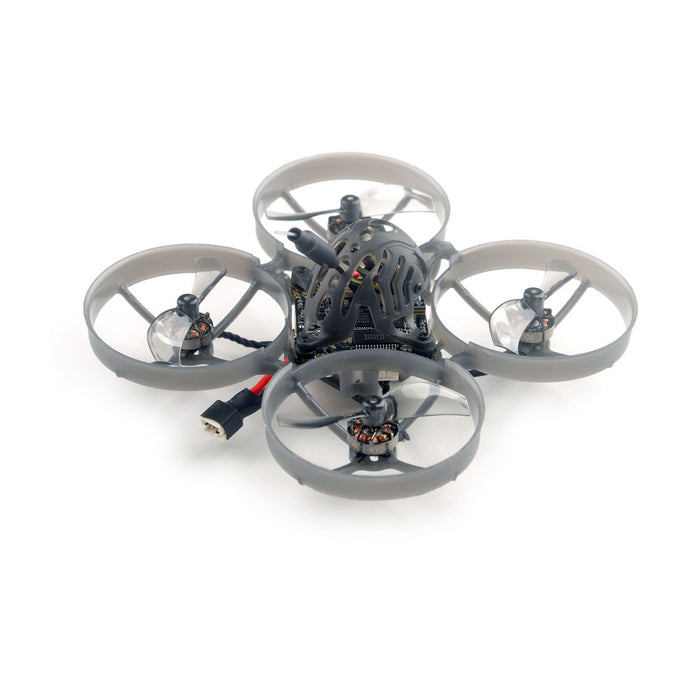

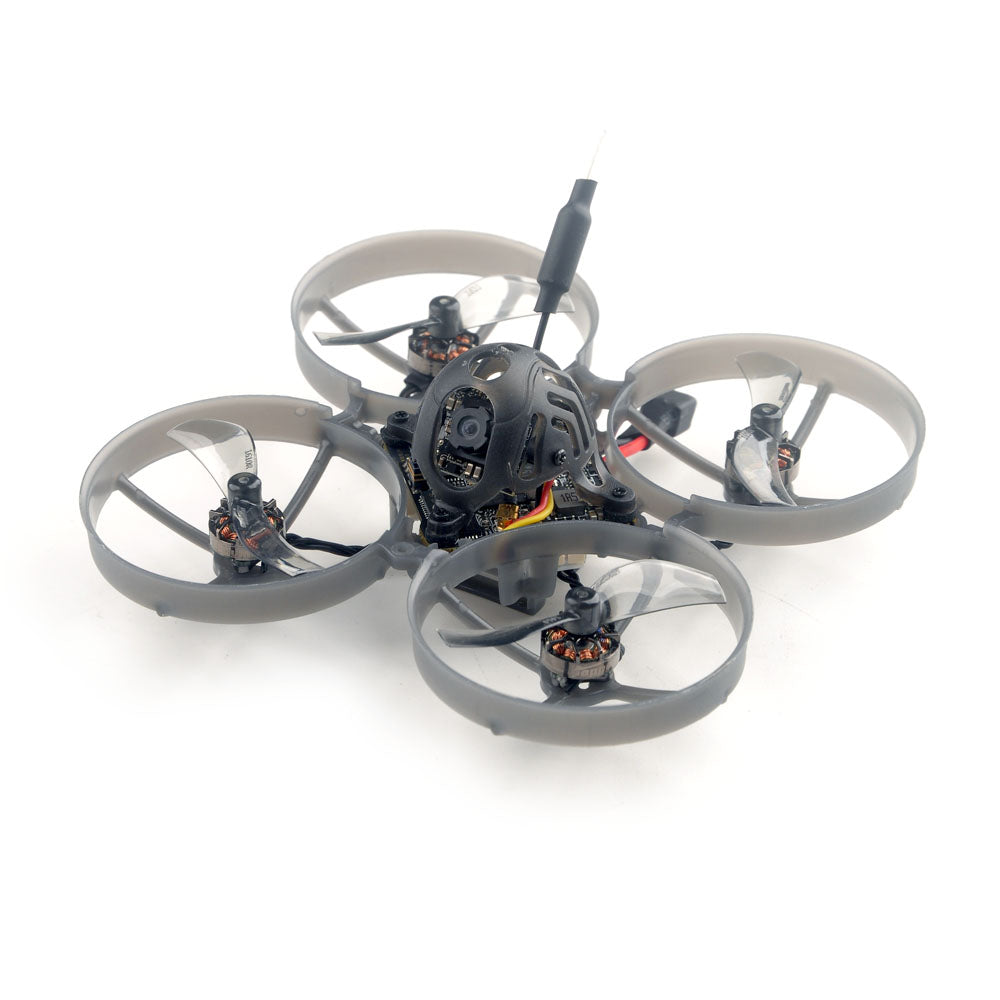

Introducing the Mobula7 1S Micro FPV Whoop Drone
If you're looking for an incredible drone experience, look no further than the Mobula7 1S Micro FPV Whoop Drone. Powered by a 1S power base, the Mobula7 1S offers exceptional performance and precision. It boasts exciting features like the world's first 5-IN-1 AIO flight controller and third-generation RS0802 brushless motor, making it the ultimate choice for drone enthusiasts during the whoop season.
Key Features
- The X12 5-IN-1 AIO flight controller is integrated with ExpressLRS 2.0, OPENVTX (up to 400mW), 12A Brushless Blheli_S ESC, and Betaflight OSD.

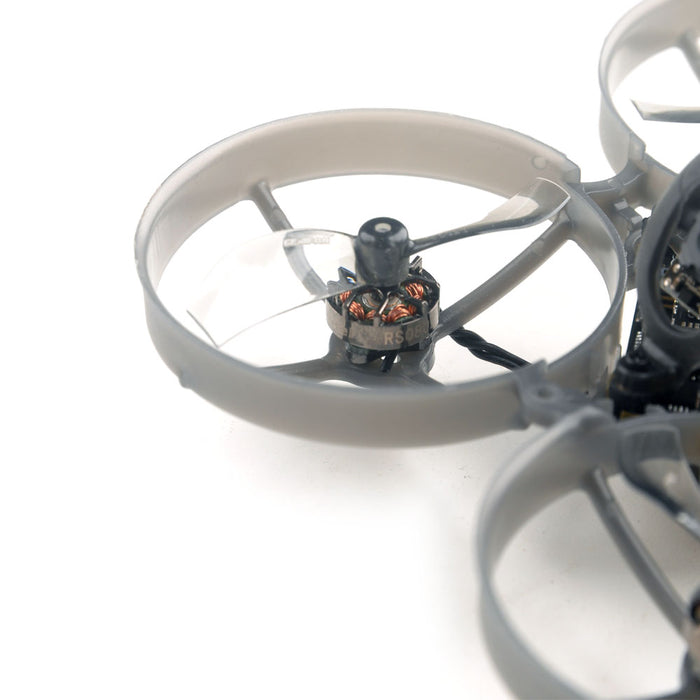

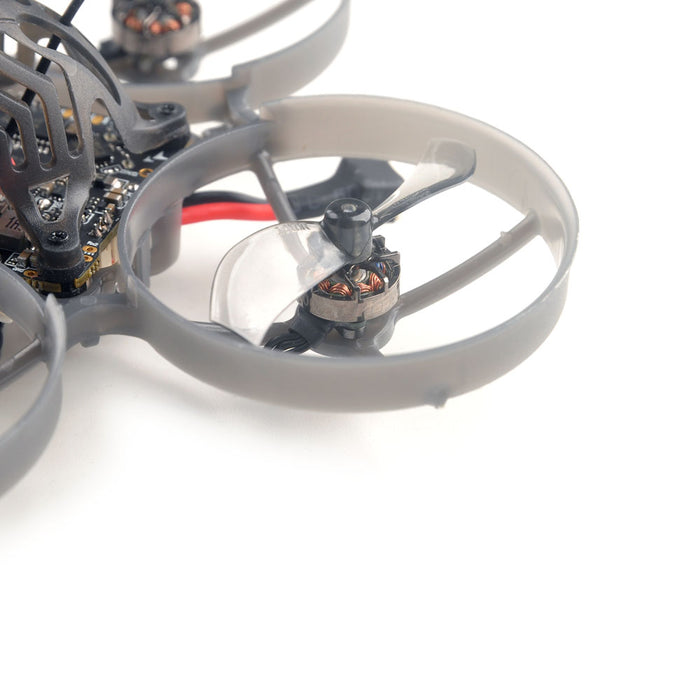

- The new RS0802 20000KV motors have a unibell design, a 1.5mm shaft, and a PCB bottom plate for high efficiency and reliability.
- The onboard OpenVTX boasts a maximum power of 400mW, offering RCE and PIT modes for racing events.
Specifications

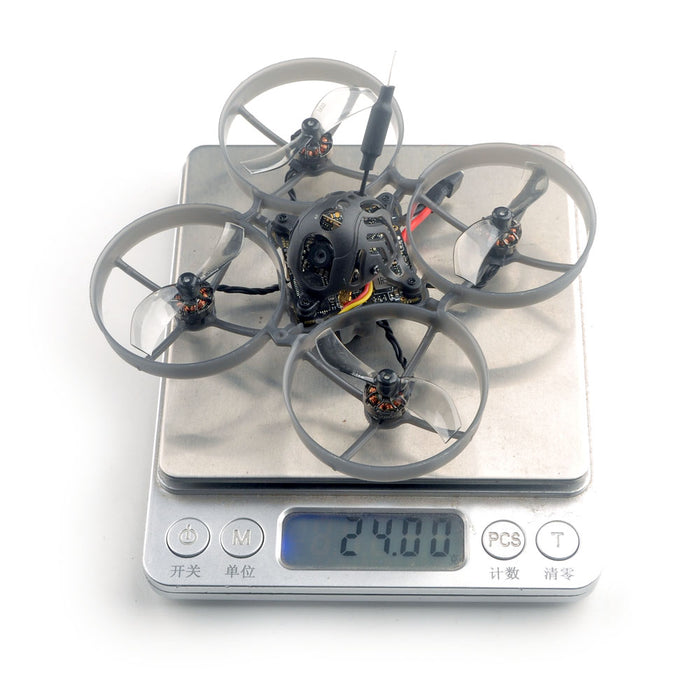

The Mobula7 1S features a 75mm wheelbase, measures 99mm x 99mm x 40mm, and weighs just 24g. The flight controller supports 1S LIPO/LIHV batteries, and it is compatible with various protocols and receivers. The 4-in-1 ESC supports BLHeliSuite and can handle up to 12A current, peaking at 15A for 3 seconds. The drone's powerful brushless motor can reach 20,000 KV, making your flights smooth, fast, and enjoyable.
Impressive Camera and VTX Options

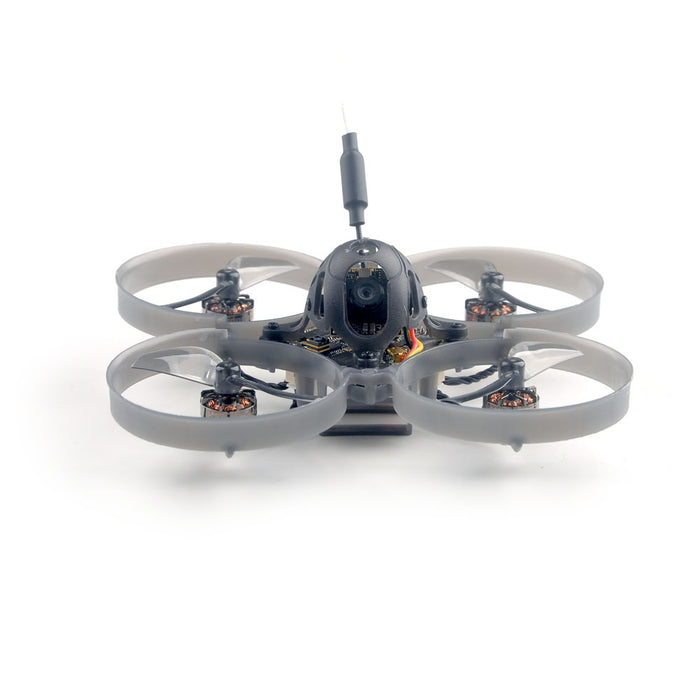

The Mobula7 1S comes equipped with the ultra-light Runcam Nano3, offering a 1/3 CMOS 800TVL camera for crisp imaging. The onboard 5.8G OpenVTX provides various transmission power options, supporting 0mW, 25mW, 100mW, and 400mW. With smart audio capabilities, RCE and PIT modes, and support for 48 channels, the possibilities are endless.
Customizable and Easy to Use
This drone is compatible with 1S 450mAh/550mAh/650mAh batteries (not included), giving you the flexibility to select the right power source for your flights. Additionally, the Mobula7 1S is user-friendly, with included tools like a propeller disassemble tool and an extra camera canopy to make your drone experience even more enjoyable.
Package Contents
Each Mobula7 1S package comes with the drone frame, your choice of flight controller (with or without an onboard receiver), four RS0802 KV20000 brushless motors, eight Gemfan 1610-2 bi-blade propellers, a Runcam Nano3 camera, an onboard 5.8G OpenVTX VTX, a 1S parallel charging board, and additional accessories.
Experience the unparalleled performance and versatility of the Mobula7 1S Micro FPV Whoop Drone today!
Product Specifications
Motor
|
Mode: RS0802 KV20000
Configu-ration:9N12P
Stator Diamter:8mm
Stator Length:2mm
Shaft Diameter:Φ1.5mm
Motor Dimension(Dia.*Len):Φ10.5mm*13.5mm
Weight(g):2.0g
No.of Cells(Lipo):1S only
|
Propellers
|
Weight:0.24g
Material:PC
Pitch:1 inch
Props Dia:40mm
Center Thickness:5mm
Center Hole Dia:1.5mm
|
Flight controller
|
X12 ELRS V1.0 flight controller built-in ELRS 2.4G receiver Target: CRAZYBEEF4SX1280
X12 Frsky V1.0 flight controller built-in SPI Frsky 2.4G receiver Target: CRAZYBEEF4FR
X12 Flysky V1.0 flight controller built-in SPI Flysky 2.4G receiver Target: CRAZYBEEF4FS
X12 PNP V1.0 flight controller without onboard receiver Target: CRAZYBEEF4DX
MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
Sensor: MPU6000 or ICM20689(SPI connection)
Mount hole size: 25.5mm*25.5mm
Power supply: 1S battery input (DC 2.9V-4.35V)
Built-in 12A(each) Blheli_S 4in1 ESC
Built-in Betaflight OSD(SPI Control)
Built-in 5.8G OpenVTX 0mw~400mw
Built-in ExpressLRS 2.4G,Frsky D8/D16,Flysky AFHDS 2A
Built-in voltage detection
Built-in current sensor
|
Onboard 4in1 ESC
|
Power supply: 1S LiPo/LiPo HV
Current: 12A continuous peak 15A (3 seconds)
Support BLHeliSuite programmable
Factory firmware: Z_H_30_REV16_7.HEX
Default protocol: DSHOT300
Support Bluejay firmware
|
|
Onboard SPI ExpressLRS 2.4GHz Receiver
( 2.4G ELRS Receiver Version)
|
Packet Rate option: 50Hz/150Hz/250Hz/500Hz
ExpressLRS Firmware version: V2.0
RF Frequency: 2.4GHz
Antenna: SMD antenna
Telemetry output Power: <12dBm
Receiver protocol: SPI ExpressLRS
Compatible with ExpressLRS V2.0 TX Module
Couldn’t flash separately ExpressLRS firmware
|
|
Onboard Frsky SPI D8/D16 receiver compatible
( Compatible Frsky Receiver Version)
|
SPI BUS receiver Frsky D8 compatible
Compatible Non-EU transmitter D8 model
Channels: 8ch
No ground interference ( Transmitter and receiver 1 m from the ground): 200meter
Failsafe support
|
|
Onboard Flysky SPI receiver compatible
( Compatible Flysky Receiver Version)
|
SPI BUS receiver
Protocol: AFHDS and AFHDS-2A Switchable
Channels: 8ch(AFHDS) or 14ch(AFHDS-2A)
No ground interference ( Transmitter and receiver 1 m from the ground): 200meter
Failsafe support
|
PNP Version (without onboard receiver)
|
Full UART1 for external Receiver
Support CRSF/GHOST/SBUS/IBUS/DSMX protocol
IR1 pad(invert RX1) used for SBUS input
|
Onboard 5.8g OPENVTX
|
Firmware version: OPENVTX
Smart audio v2.1
PIT Mode support
RCE Mode support
Channels:48ch
Transmitting Power: 0/RCE/25mw/100mw/400mw
Power supply: DC 5V
Current (5v): <650ma (400mw)
|
Runcam Nano3
|
Model: RunCam Nano 3
Image Sensor: 1/3" CMOS
Horizontal Resolution: 800TVL
Lens : 2.1mm(M8) FOV 150°
Signal System: NTSC
S/N Ratio: >50dB
Electronic Shutter Speed: Auto
Auto Gain Control (AGC): Auto
Min. Illumination: 0.01Lux@1.2F
D-WDR: Auto
Day/Night: Color
Power:DC 3-5.5V
Current: 110mA@5V 120mA@3.3V
Housing Material: ABS
Net Weight: 1.2g
Dimensions: L14mm*W14mm*H9mm
|
|
Recommend 1S Lipo Battery(Not included)
|
Capacity: 650mAh
Voltage: 3.8v
Continuous Discharge Rate: 30C
Instantaneous discharge rate: 60C
Size: 60mmx18mmx8mm
Weight: 16g
Connector: PH2.0
