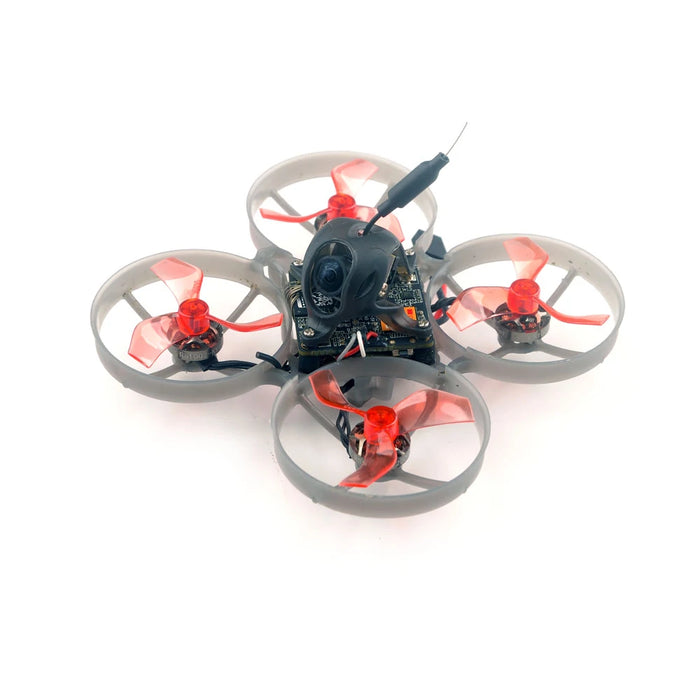

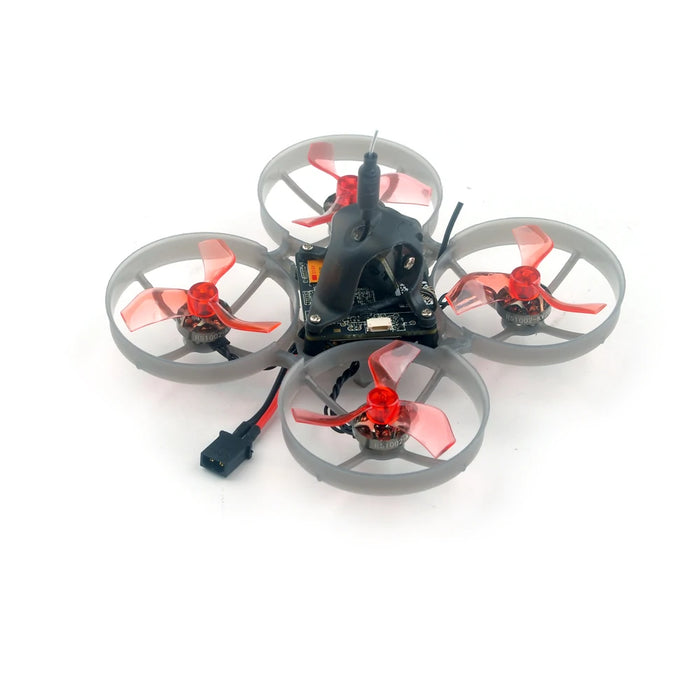

Introducing the All-New Moblite7 Walksnail FPV Drone

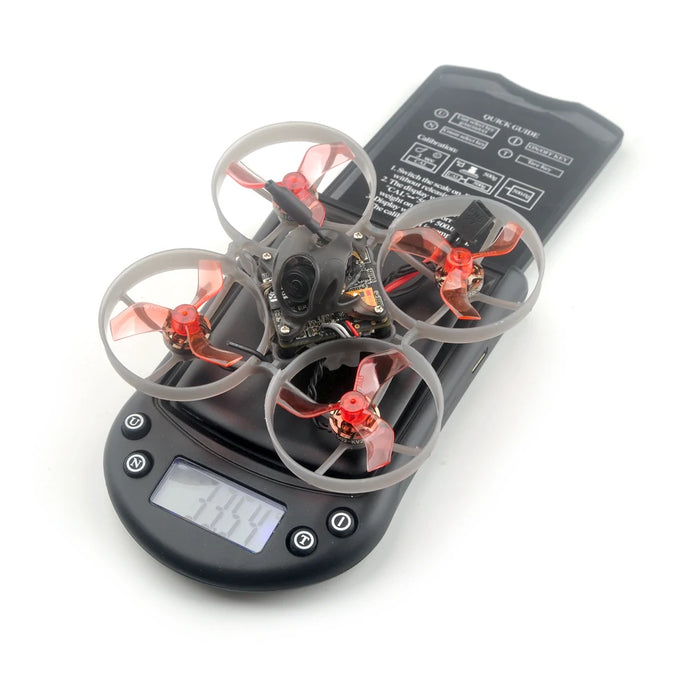

Welcome to the future of competitive drone racing with the newly launched Moblite7 Walksnail FPV Racing Drone by Happymodel. This dynamic 1S 75mm HD Whoop drone, weighing just 33.5 grams (without battery), offers unparalleled speed and agility with enhanced features for optimal performance. The perfect companions for drone enthusiasts and racing professionals alike, this game-changer takes mobility and user experience to new heights.
Key Features and Specifications

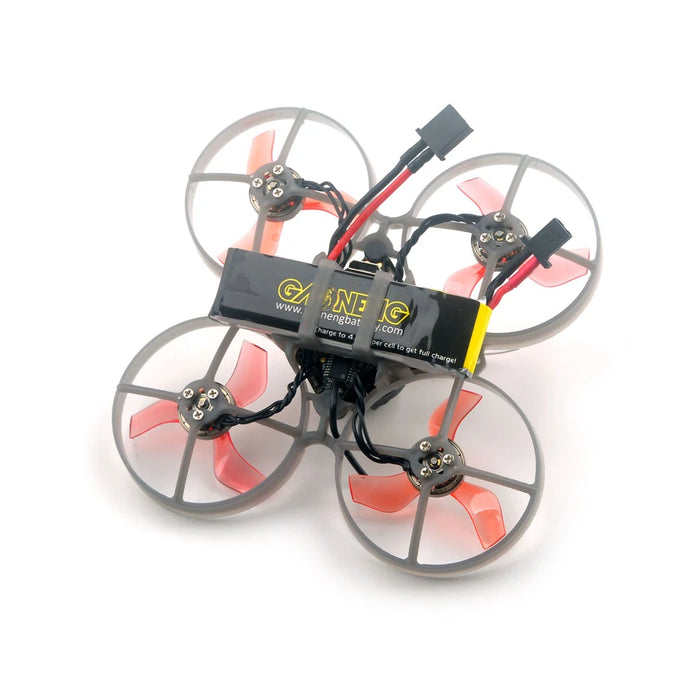

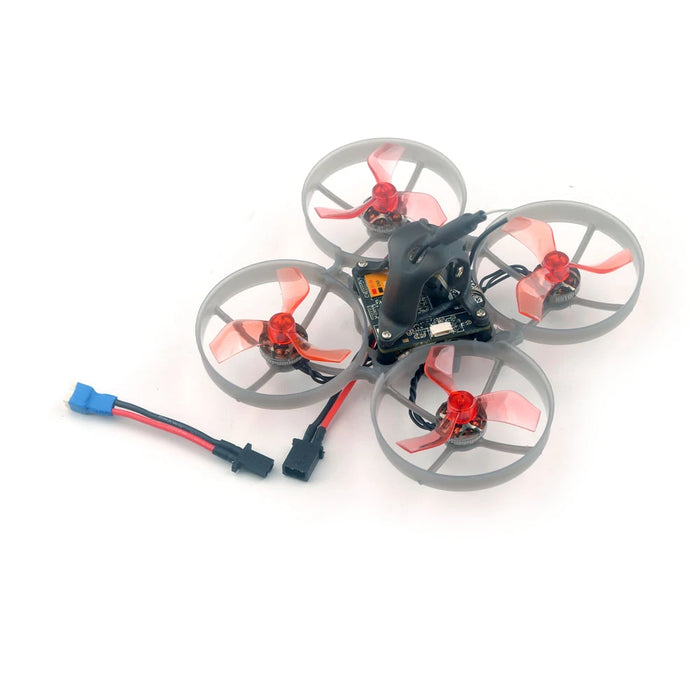

The compact yet powerful Moblite7 Walksnail measures 98mm*98mm*48mm and operates using either a 1S Lipo or Lihv battery. Optimized to support a GNB27 battery plug, this updated design eliminates the need for a 3D print battery tray, highlighting its straightforward, user-friendly approach.
The integrated, energy-efficient SuperX HD ELRS Flight Controller sets a new standard for seamless navigation, further bolstered by the Betaflight 4.4.2 firmware ready feature and its CRAZYBEEF4DX Firmware target.
Improved Flight Controller and ESC
Despite being lightweight, the Marvel boasts a robust built-in 12A(each) Blheli_S 4in1 ESC Dshot300 read and a robust STM32F411CEU6 MC, ensuring smooth and precise controls even in challenging weather conditions. Accommodating a wide power supply range of 1-2S Lipo Lihv battery input, from DC 2.8V~8.7V, this drone delivers consistent and stable performance throughout.
Efficient Onboard Receiver and Motor
With the onboard UART ExpressLRS 2.4GHz Receiver, you enjoy superior speed regulation and control of your drone. The RF Frequency of 2.4GHz accommodates an enameled copper wire antenna measuring 31mm length, promising strong and stable connections always.
Upgraded Propellers and VTX
Sparkling Gemfan 1635-3 propellers efficiently cut through the wind, while the compact Avatar mini 1s module, operating between 5.725-5.850 GHz, promises the unbeatable stability of the device during high-speed maneuvers.
High-quality FPV Camera
Adding to the list of enhanced features, the Walksnail is equipped with an Avatar Nano Image Sensor camera with a resolution of 1080P, a 2.1mm lens capturing your flight memories with unmatched clarity.
Enclosed within a sturdy frame wheelbase of 75mm, the Moblite7 Walksnail FPV Drone brings you technology and flight prowess that’s second to none.
Package Contents

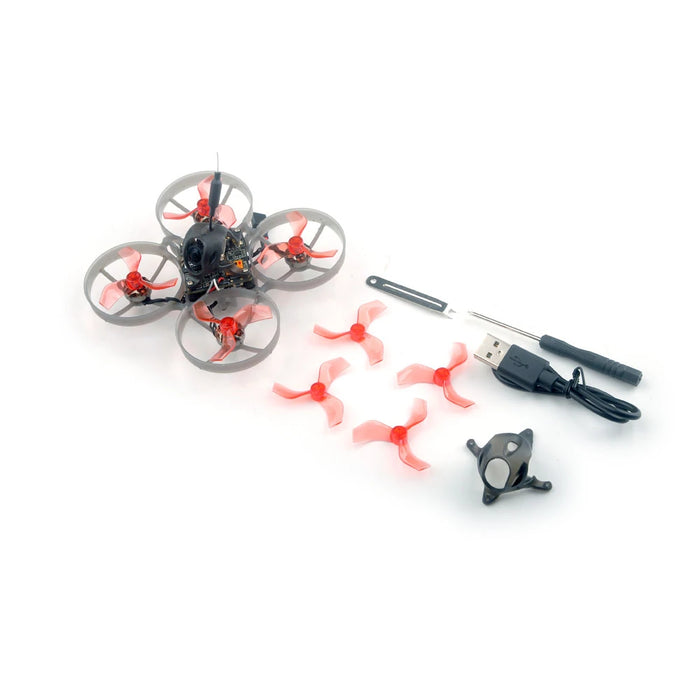

The package includes the Moblite7 V3 Walksnail FPV Drone, an extra canopy, a propeller disassembly tool, and a screwdriver. Please note that the package does not include the Lipo battery.
Product Specifications
|
New V3.0 Version |
Old Version |
| Flight Controller |
SuperX HD ELRS Flight Controller
Betaflight 4.4.2 firmware ready
Firmware target: CRAZYBEEF4DX
MCU:STM32F411CEU6 (100MHz, 512K FLASH)
Sensor: BMI270 or ICM42688P (SPI connection)
Power supply: 1-2S Lipo Lihv battery input (DC 2.8V~8.7V), only support 1s input for this drone
Built-in 12A(each) Blheli_S 4in1 ESC Dshot300 read
Built-in UART elrs receiver , elrs v3.0 ready, support WIFI and pass-through firmware update
Bluejay ESC Firmware ready
Built-in 5V 1A BEC
Built-in voltage detection
No betaflight analog osd chip
|
SuperbeeF4 Lite ELRS/FRSKY
SPI ELRS version Firmware target: CrazybeeF4SX1280
SPI FRSKY version Firmware target: CrazybeeF4FR
MCU:STM32F411CEU6 (100MHz, 512K FLASH)
Sensor: MPU-6000 or ICM20689 or BMI270(SPI connection)
Power supply: 1S Lipo Lihv battery input (DC 2.8V~4.35V)
Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready
Built-in Betaflight OSD(SPI Control)
Built-in SPI Frsky/ExpressLRS receiver
Built-in 5V 1A BEC
Built-in voltage detection
|
Onboard 4in1 ESC
|
Power supply: 1-2S LiPo/LiPo HV
Current: 12A continuous peak 15A (3 seconds)
Support ESC-Configurator and BLHELI_S Suite configurator
Factory firmware: Z-H-30 – Bluejay, 0.19, 48kHz
Default protocol: DSHOT300
|
MCU upgraded to EFM8BB21
Power supply: 1S LiPo/LiPo HV (2.8v~4.35v)
Currents: 5A continuous peak 6A (5 seconds)
Support BLHeliSuite programmable
Factory firmware: O_H_5_REV16_8.HEX
Default protocol: DSHOT150/DSHOT300/DSHOT600
|
| Onboard Receiver |
ELRS Receiver Version:
Onboard UART ExpressLRS 2.4GHz Receiver
RF Frequency: 2.4GHz
Antenna: enameled copper wire 31mm length
Telemetry output Power: <12dBm
Receiver protocol: CRSF
Default firmware version: ExpressLRS V3.0.1
The same hardware with Happymodel EP1 receiver
Could update firmware via ExpressLRS configurator or WIFI or Betaflight pass-through
Frsky Receiver: Doesn't have V3 Version.
|
ELRS Receiver Version:
Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz
RF Frequency: 2.4GHz
Telemetry output Power: <12dBm
Receiver protocol: SPI ExpressLRS
Could bind with ELRS V2.0 firmware TX module
Frsky Receiver Version:
SPI BUS receiver Frsky D8/D16 compatible
Compatible Non EU transmitter D8 model and EU-LBT(Frsky_x_lbt)
Channels: 8ch or 16ch
Failsafe support
No ground interference
( Transmitter and receiver 1 m from the ground): 100m~200m
Based on CC2500 RF module Compatible with Futaba S-FHSS , Redpine protocol
|
| Motor |
Model: RS1002 20000KV
Configu-ration:9N12P
Stator Diameter:10mm
Stator Length:2mm
Shaft Diameter:Φ1.5mm
Motor Dimension(Dia.*Len):Φ13.5mm*12.5mm
Weight(g):2.5g
No.of Cells(Lipo):1S only
|
Propeller Gemfan 1610-2 Bi-blades ( V1 )
|
Weight:0.24g
Material: PC
Pitch:1 inch
Props Dia:40mm
Center Hole Dia:1.5mm
|
| VTX |
Model: Avatar mini 1s module
Communication Frequency: 5.725-5.850 GHz
Transmitter Power(EIRP): FCC:<25.5dBm; CE:<14dBm; SRRC: <20dBm;MIC:<25dBm
l/o Interface: JST1.O*6(Power in)JST1.O*4(USB)
Mounting Holes: 25.5*25.5 mm
Dimensions: 33*33*6.5 mm
Storage: 8G
Recording: 1080p/720p
Weight: 6.8 g
Operating Temperature: -20-40℃
Channels: 8
Wide Power lnput: 3.1V-5V
Supported FC System: Betaflight
OSD: Canvas mode
Bitrate: 25mbps / 50mbps
Latency: Average delay 22ms
Antenna connector: IPEX
|
| FPV Camera |
Model: Avatar nano
lmage Sensor: 1/2.7”Inch
Resolution: 1080P/6Ofps,720P/120fps,72OP/6Ofps
Ratio: 16/9 4/3
Lens: 2.1mm
FOV 170°
Aperture: F2.0
Shutter: Rolling shutter
Min.Illumination: 0.001Lux
Weight: 3.5g
Dimensions: 14*14*17mm
Coaxial Cable: 45mm
|
