Introducing the GEPRC MARK5 HD Freestyle Drone
Discover the exciting world of freestyle drone flying with the new generation GEPRC MARK5 HD quadcopter, the best freestyle drone on the market. Featuring a wide X-arm design and a unique shock absorbing structure, the MARK5 is equipped with the latest technology to provide a stable and thrilling freestyle flying experience. Choose from three available versions: HD, Analog, and the newly updated Runcam Link Wasp Digital System. Packed with incredible features and designed for optimum performance, the MARK5 is ready to fly straight out of the box. Just plug in the battery and have fun!
High-Quality Features and Top-Notch Performance
- Aluminum alloy side plates for stunning appearance, reduced weight, and added endurance
- Bluetooth wireless connection support for easy field tuning
- Wide X-arm design specifically created for freestyle flying
- Analog version comes with the latest RADVTX 1.6W and Caddx Ratel 2 camera
- A variety of receiver options, including the new ExpressLRS Rx
- SPAN G50A BLHeli_32 4IN1 50A ESC with GEPRC's latest 2107.5 motor for explosive power and quick response speed
- Unique shock absorbing structure for less vibrations and resonance
- Independent capacitor and buzzer compartment for better performance and shaking reduction
- New GEMFAN Freestyle 4S propellers for delicate and silky smooth flight experience

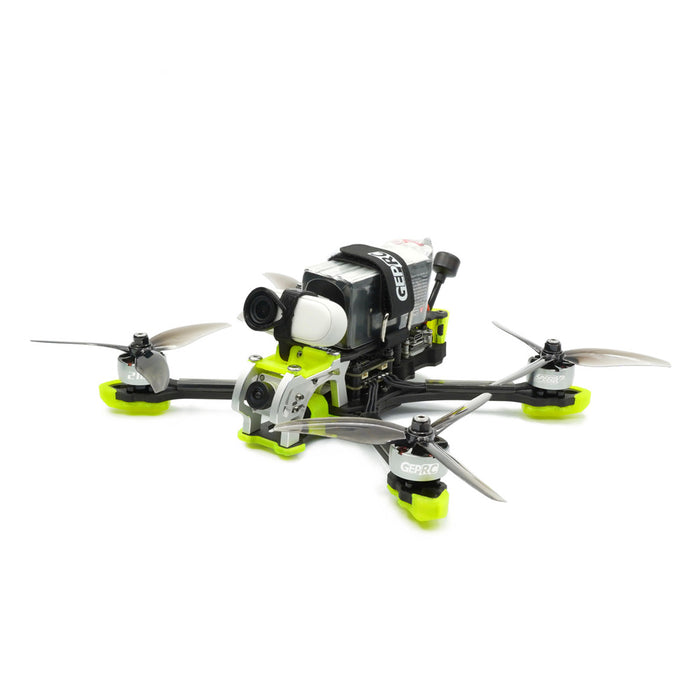

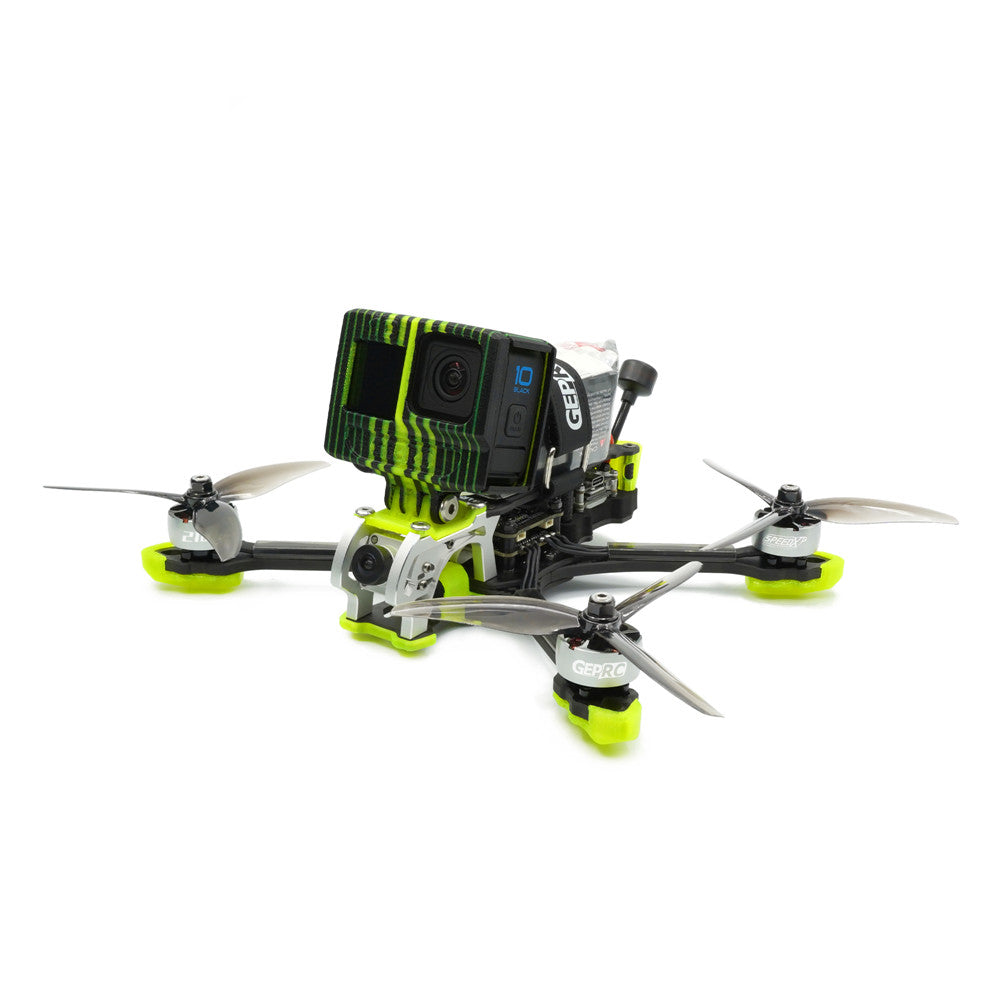

- Two different 3D printed action camera mounts compatible with GoPro8/9/10, Naked Gobro8, Insta 360 GO2, and Caddx Peanut cameras (cameras not included)
- MARK5 is the most ideal choice for freestyle flying and bando-bashing resistant
Detailed Specifications
Brand: Geprc
Model: Mark5 HD (Runcam Link WSAP)
Item Name: 225mm F7 5 Inch Freestyle FPV Racing Drone
Frame: GEP-MK5
Wheelbase: 225mm
Top plate: 2.5mm
Bottom plate: 2.5mm
Arm plate: 5mm
FC system: SPAN F722-HD-BT FC
MCU: STM32F722
IMU: MPU6000(SPI)
OSD: BetaFlight OSD w/AT7456E chip
ESC: SPAN G50A BLHeli_32 4IN1 50A 4-6S ESC
VTX: VISTA
Camera: AIR UNIT Camera
Propeller: Freestyle 4S
Antenna: GEPRC Momoda 5.8G UFL LHCP 85mm
Motor: SPEEDX2 2107.5-1950KV (6S Version) / SPEEDX2 2107.5-2450KV(4S Version)

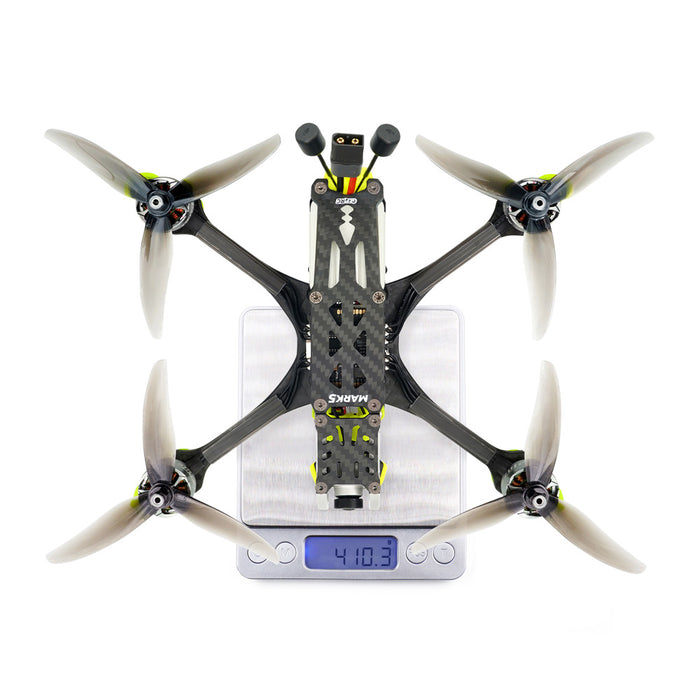

Weight: 391.5g (MARK5 HD VISTA 6S PNP including 3D print)
Recommended Lipo Battery: (NOT Included)
4S 1300mAh-1800mAh (4S Version) / 6S 1050mAh-1550mAh(6S Version)
Package Contents
1 x MARK5 HD WSAP Quadcopter
4 x Freestyle 4S propellers (pair)
1 x Battery strap M15x250mm
2 x Battery strap M20x220mm
1 x Battery strap M20x250mm
2 x Battery Silicone Pads
1 x Camera cage carbon top plate
1 x 3D print mountings combination
2 x Action cam mount holder
1 x Set of screws
1 x Set of screwdrivers
1 x Antenna fixed tube

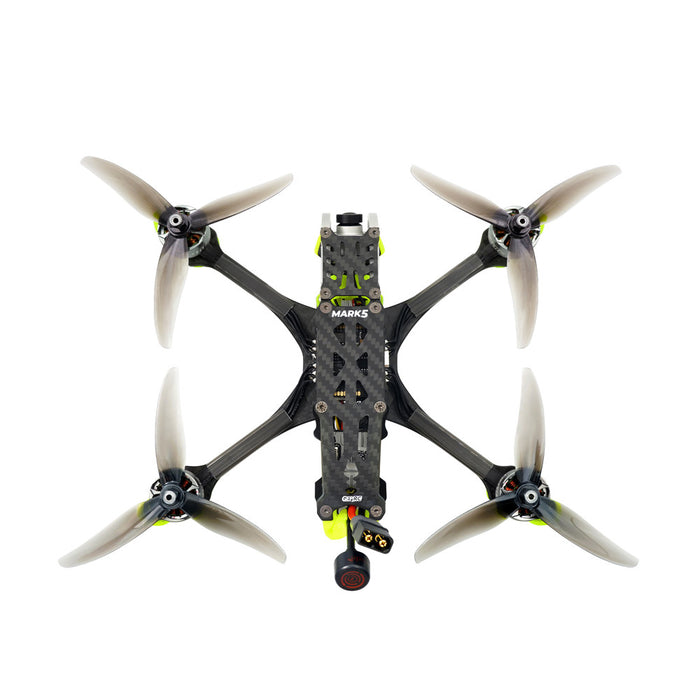

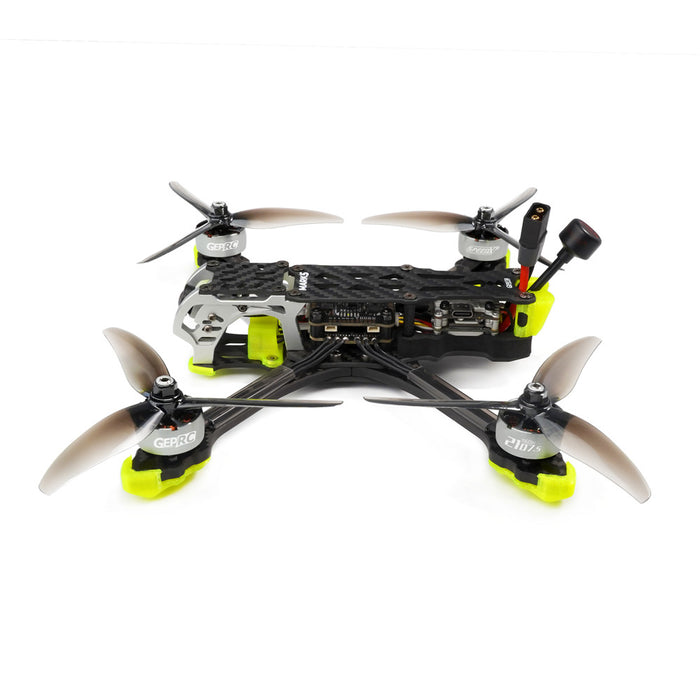

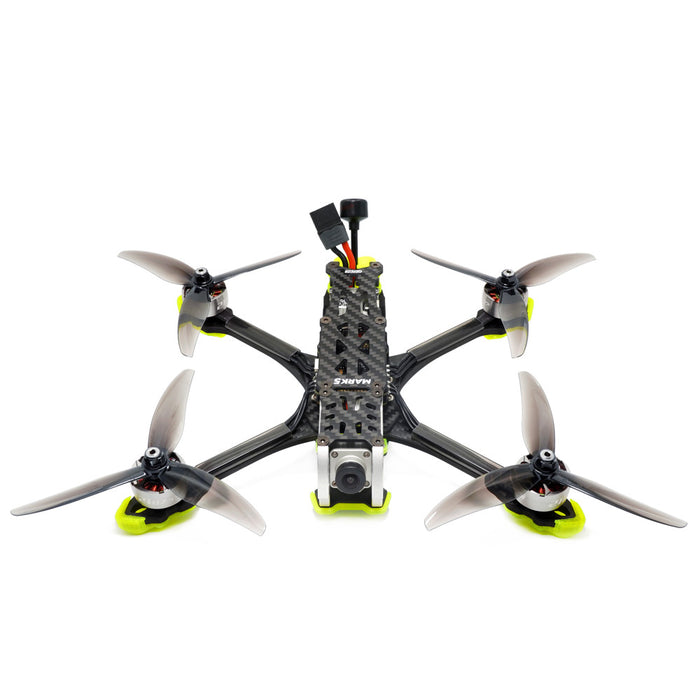

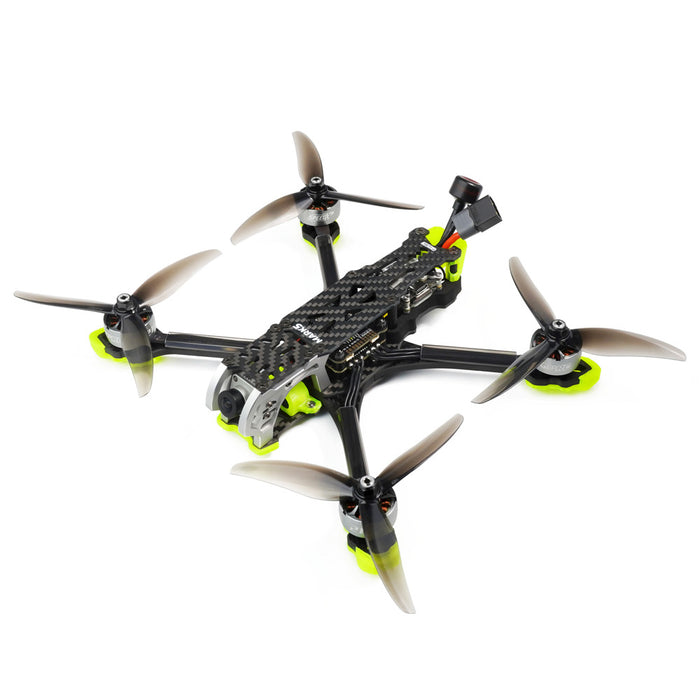

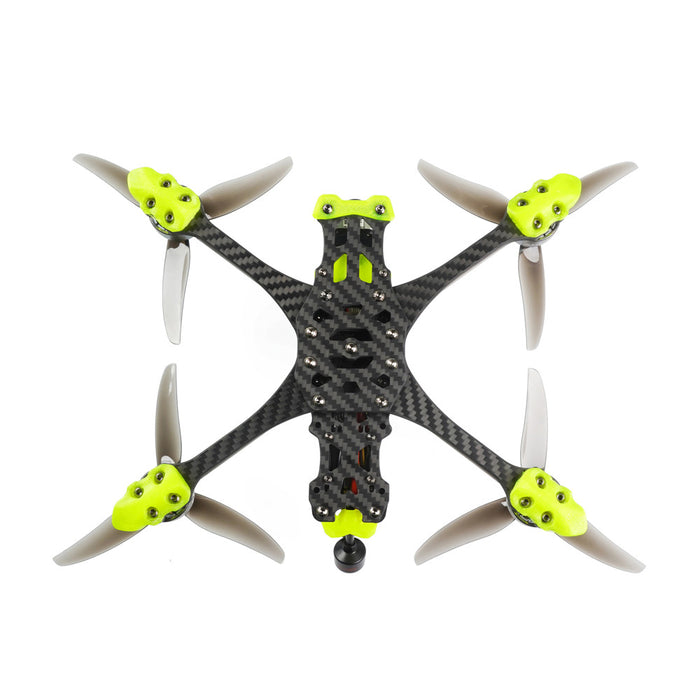

Product Images
