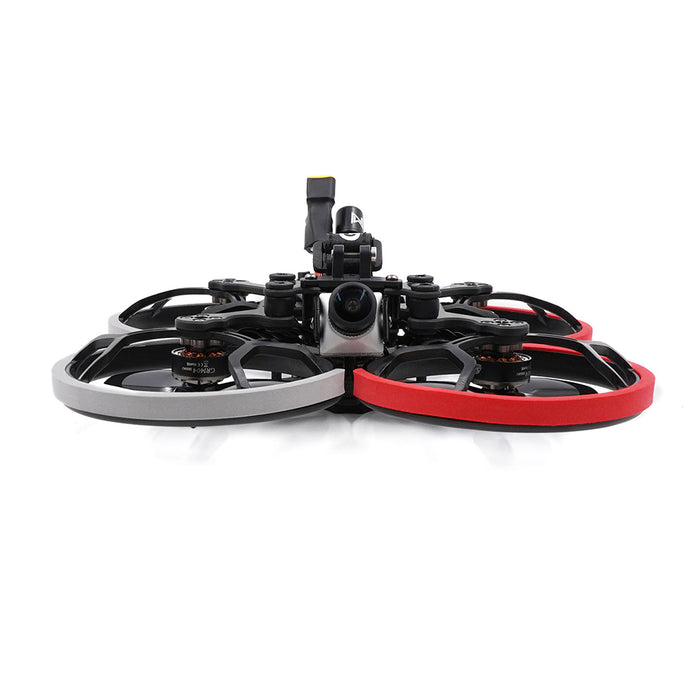

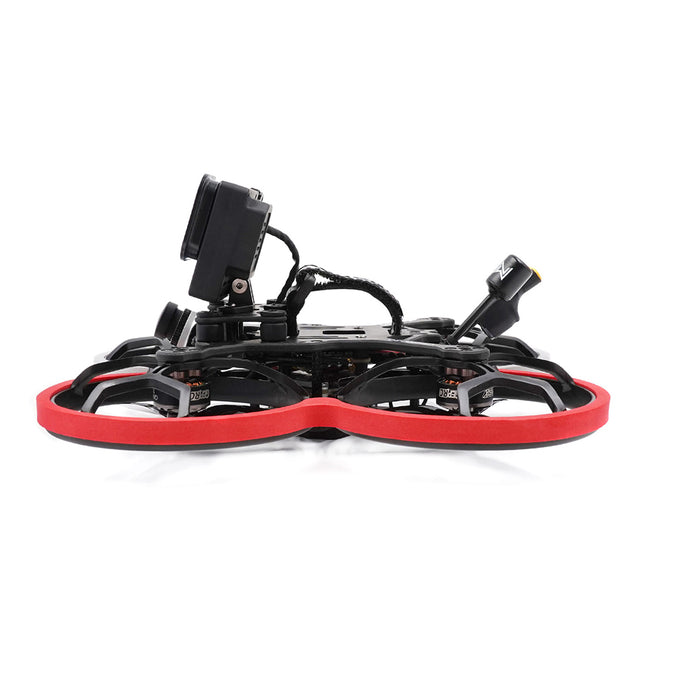

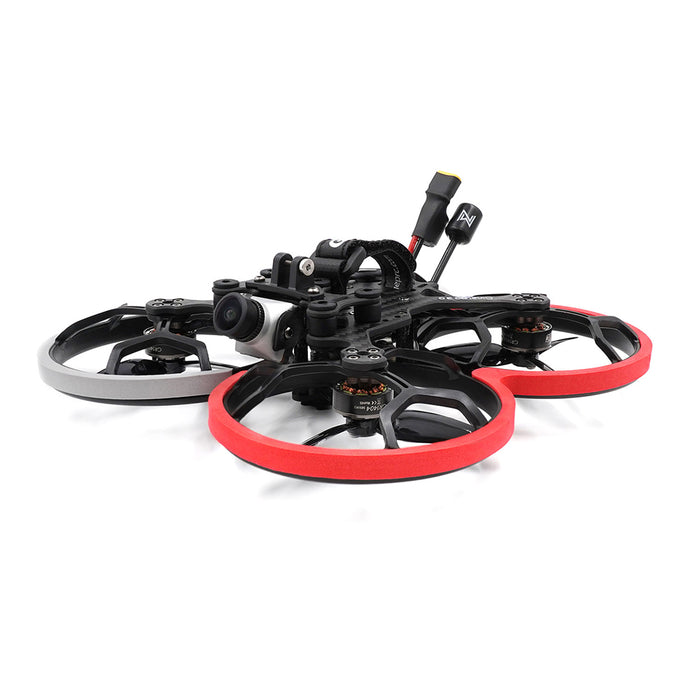

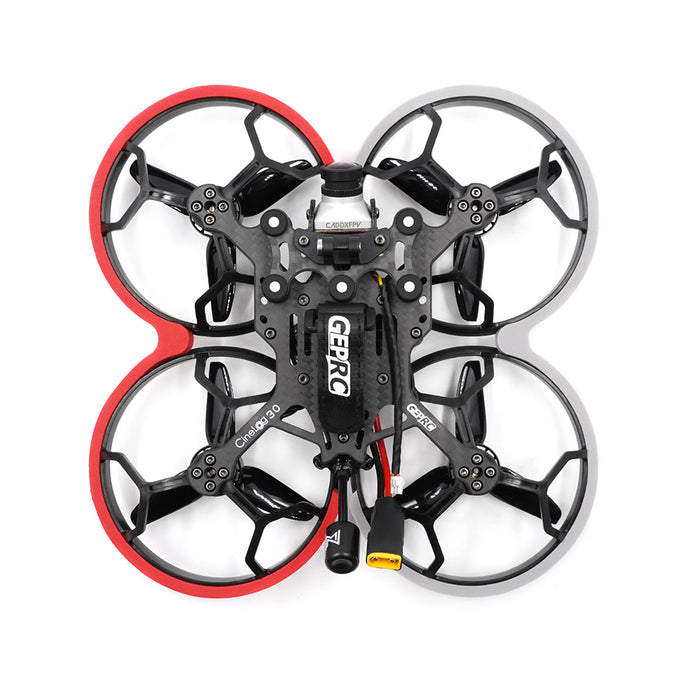

Introducing the CineLog30 HD Racing Drone
Get ready to experience the ultimate in aerial racing and footage with the GEPRC CineLog30 HD Racing Drone, optimized for GoPro Hero 8 and INSTA 360 GO2 cameras. Designed with a small, lightweight body, this FPV racing drone boasts significant enhancements, improved stability, and exciting new features. Capture stunning aerial visuals, whether you're a pro or just starting out.
Runcam Link Wasp Digital System
The CineLog30 HD Racing Drone comes equipped with the Runcam Link Wasp digital system, providing stunning, high-quality footage from every flight. Never miss a moment with this advanced technology at your fingertips.
Ultra-Light GEP-CL30 Frame
Constructed with a newly developed GEP-CL30 frame, this drone boasts an ultra-light fuselage made of durable, high-impact carbon material. Its lightweight design ensures better control and maneuverability while maintaining the strength and toughness needed for extreme aerial acrobatics.

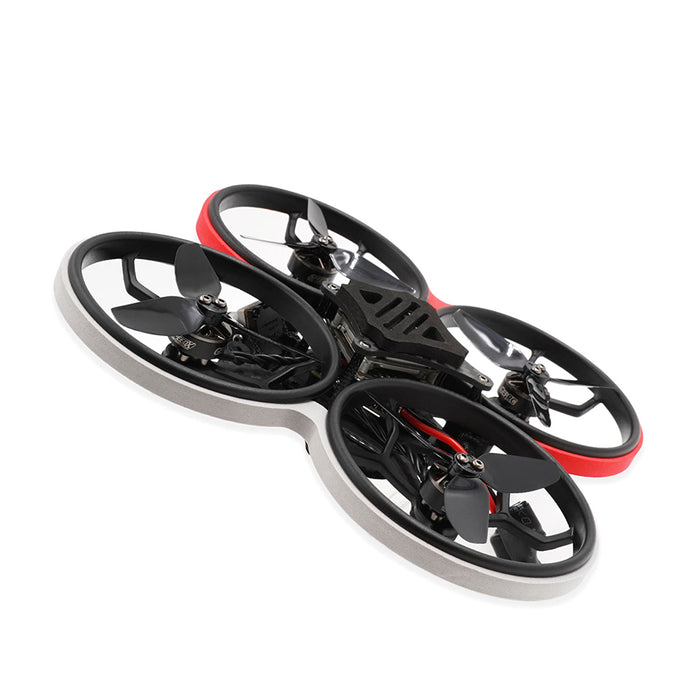

Upgraded Reversed-Motor Design
Featuring an upgraded reversed-motor design and a more compact structure, this drone provides a more stable and smooth freestyle experience. Experience the thrill of flying with this high-performance racing drone and captivate your audience with incredible aerial footage.
Shock Absorption & Backward Push Design

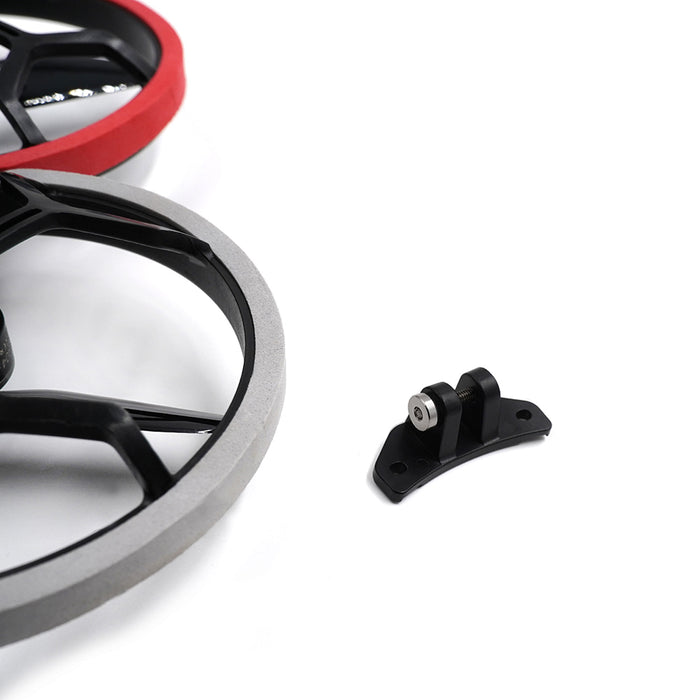

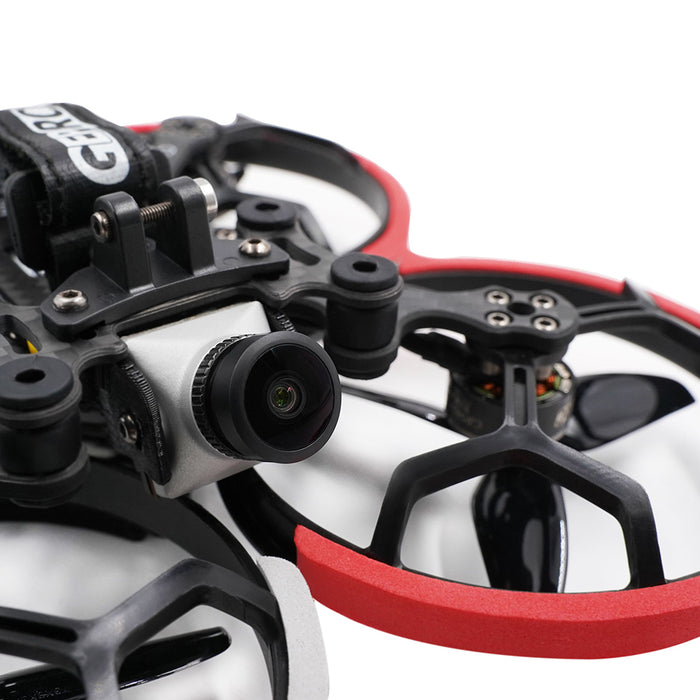

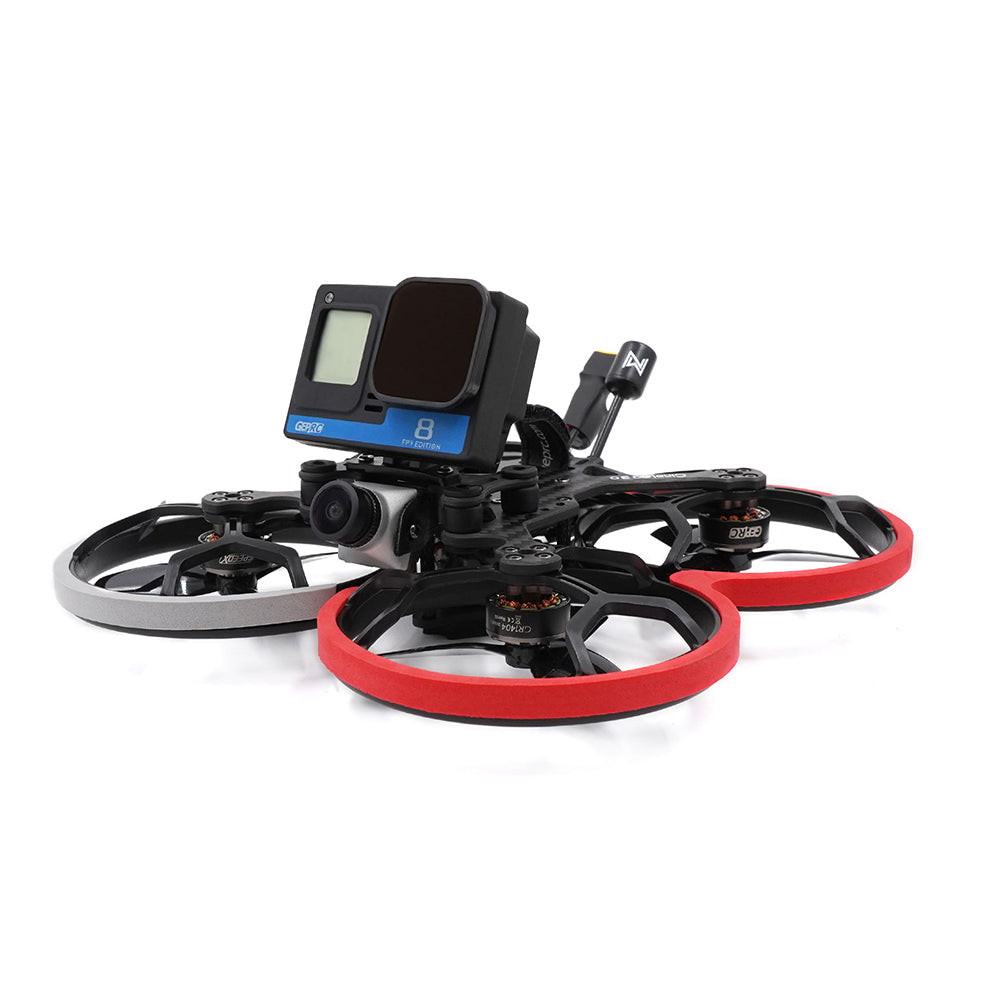

The camera mount of the CineLog30 HD Racing Drone features a shock absorption structure and a unique backward push design, ensuring the safety and stability of your onboard camera. Capture every breathtaking moment with confidence, knowing your camera is secured on this stable platform.
DJI HD System & VISTA Polar HD Camera
Record crisp, crystal-clear visuals with the DJI HD System and VISTA Polar HD Camera integrated seamlessly with this drone. Experience vibrant colors and stunning clarity as you soar through the skies and capture every moment in vivid detail.
Model: CineLog30 HD
Item Name: 126mm F4 4S 3 Inch FPV Racing Drone

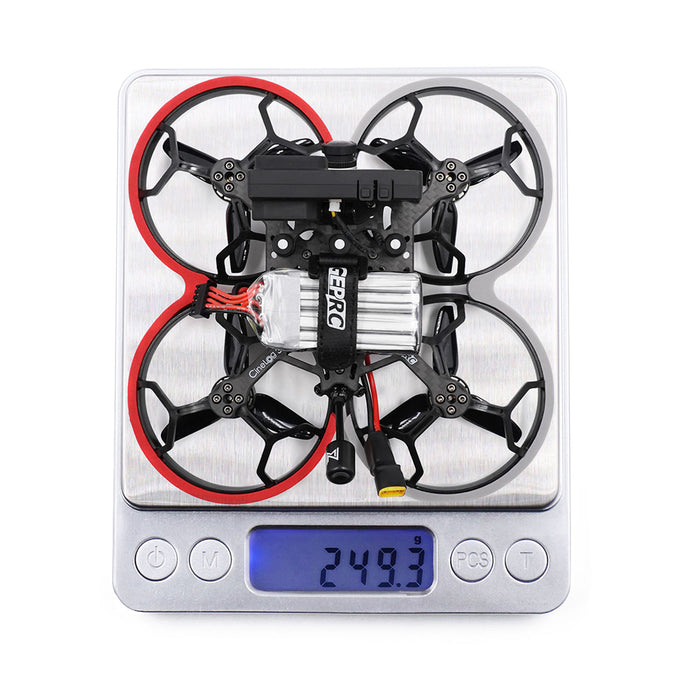

CineLog30 HD weight: 158.5g (Without battery)
For a more detailed list of specifications, please refer to the original description above.

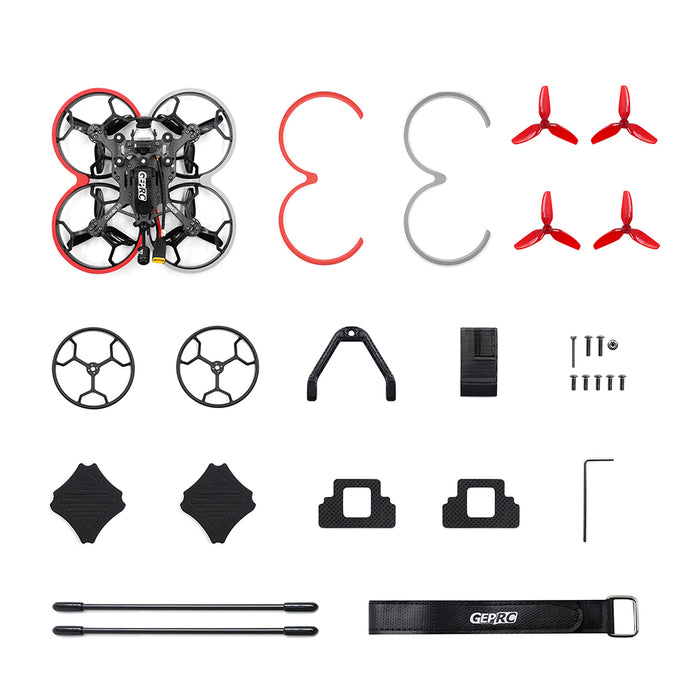

The GEPRC CineLog30 HD Racing Drone package includes:
- 1 x CineLog30 HD Quadcopter
- 1 x Battery strap 20x200mm
- 2 x T3x3x3 propellers (pairs)
- 2 x Propeller guards
- 2 x EVA damping rings of guards
- 2 x EVA landing Pads
- 2 x Battery Silicone Pads
- 1 x Antenna tube
- 1 x Screw package
- 1 x TBS receiver mount (PNP)
- 1 x TBS receiver antenna mount (PNP)
The recommended battery for the CineLog30 HD Racing Drone is a 4S 660mAh Lipo battery (not included).
|126mm Frame Kit
Motor to Motor: 126mm
Top plate: 2.0mm
Bottom plate: 2.0mm
|F4 Flight Controller AIO 35A ESC
Model: GEP-F411-35A AIO FC
IMU: MPU6000 gyro/accelerometer(SPI)
OSD: Betaflight OSD w/ AT7456Ev
UART Ports: T1 R1 / T2 R2
USB Connector: micro USB
|Onboard 35A BL_S 4in1 ESC
|ESC MCU: 8BB21F16G
Intergrated LC Filter
Continue Current: 35A
Burst Current: 40A(10s)
Input Voltage: 2~6S (LIPO Battery)
ESC Protocol: Dshot300/600,Oneshot42/125,Multishot
Current meter: 210
ESC Target: G_H_30 BLS
Size: 32x32mm Board
Mount Holes: 26.5×26.5mm,M2
|GR1404 3850KV Brushless Motor
Stator Diamter: 14mm
Stator Length: 4mm
Shaft Diameter: 1.5mm
Motor Dimensions: Φ18.3 * 14.5mm
The hole position of motor: 9mm
| T3X3X3 3030 3 Inch 3-Blade Propeller
Quantity: 2 CW & 2 CCW
