Introducing the BabyApe Pro V2 FPV Drone
Experience the joy of flight with the upgraded BabyApe Pro V2 FPV Drone. This cutting-edge drone is designed for avid pilots, offering a superior performance with a range of enhancements compared to its predecessor. Built based on feedback from pilots, the BabyApe Pro V2 is sturdier, more user-friendly, and even more fun to fly.
Key Features and Upgrades
Several key enhancements make the BabyApe Pro V2 stand out from its previous version. These upgrades include:
- Aluminum alloy standoffs for a stronger frame and stable structure
- A convenient receiver fixing bracket
- Improved arms with 3.0mm thickness for easy disassembly, durability, and strength
- A simplified design requiring only four screws for fixing and two screws for arm replacement without removing the entire drone
Detailed Specifications
The BabyApe Pro V2 comes with a range of specs and features that make it perfect for drone enthusiasts:
- Brand: DarwinFPV
- Item Name: Baby Ape/Pro 142mm 3" FPV Drone
- Colors Available: Yellow, Black, and Purple
- Weight: 71.6g
- Wheelbase: 142mm
- Frame arm thickness: 2.5mm
- Frame kit material: 3K carbon fiber
- 1104 4300KV 2-3S Brushless Motor
- AIO 4 IN1 15A BLHeli S ESC
- F411 AIO Flight Controller with integrated OSD
- Available with either the Darwin 700TVL Camera or the Baby APE Pro CADDX ANT Camera
- 5.8G 40CH 0mW/25mW/200mW switchable VTX with TBS SmartAudio support
- 3016 3-blade propellers
- Recommended battery: 2-3S 300-450mah (Not included)
- PNP (without Receiver)
Package Contents
When you purchase the BabyApe Pro V2 FPV Drone PNP, you'll receive the following items:
- 1x Baby Ape/Pro 142mm 3" FPV Drone PNP
Product Specifications
142mm Racing Frame Kit (Click)
|
Wheelbase: 142mm
Frame arm thickness: 2.5mm
Other thickness:1 .5mm
Frame kit material: 3K carbon fiber
|
1104 4300KV 2-3S Brushless Motor
|
KV: 4300KV
Lipo cell: 2-3S
Weight: 6.0g
|
AIO 4 IN115A BLHeli S ESC
|
Input voltage: 1-3SLIPo
Continuous current: 15A
Peak current:17A (10S)
BEC output: No
MCU: 48MHz EFM8BB21F16G
Protocol: DSHOY/Oneshot/MultiHhot
BLHeli-S Firmware target: S-H-50
Telemetery: No
Current Sensor:No
Main control chip:EFM8BB21
Firmware upgrade: Supports Dshot600 Oneshot125
MOS: 3*3
|
F411 AIO Flight Controller (Click)
|
Main control chip: STM32F411
Sensor: MPU6500
Integrated OSD
PPMDSM/IBUS/UAR share: UART1-RX
Mounting holes distance: 25.5*25 .5mm
Supports Betaflight firmware
Baro: No
Black Box: No
|
Baby APE
Darwin700TVL Camera
|
Resolution:700TVL
Lens: 1.8mm
Input: 3.5-5V
TV System: PAL/NTSC
|
Baby APE Pro
CADDX ANT Camera
|
Resolution:1200TVL
Mage Sensor: 1/3" CMos Sensor
Input: DC 3.7-18V
TV System: PAL/NTSC
|
5.8G 40CH 0mW/25mw/200mw switchable VTX
|
Supports TBS SmartAudio
Transmitting power: 0mW/25mW/100mW/200mW switchable
Channel: 40CH
Full video format: NTSC/PAL
Input voltage: 7V~24V
Power dissipation: +12V/600MW
Size: 25x20x6mm
Weight: S3.2g (except antenna)
With copper pipe mini antenna (ipex antenna)
|
3016 3-blade propeller
|
Material: PC
Mounting hole: 1.5mm
Center thickness: 5.5mm
Quantity: 2 pairs
Weight: 1.18g a pair
|
Lipo Battery
|
Recommend 2-3S 300-450mah(Not included)
|
Receiver |
PNP(without Receiver) |

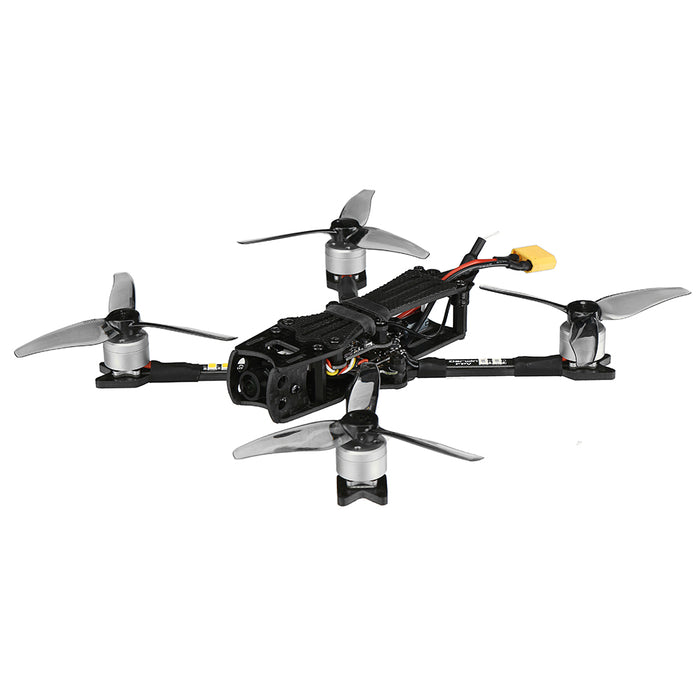

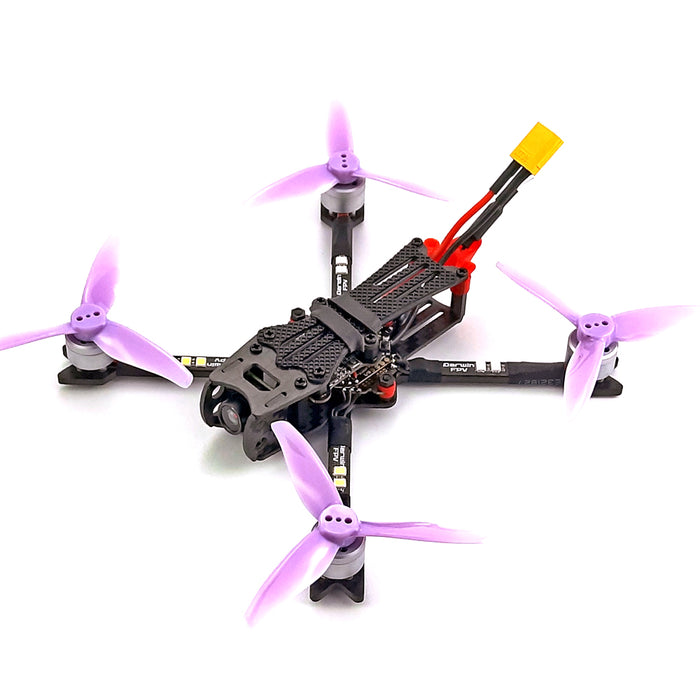

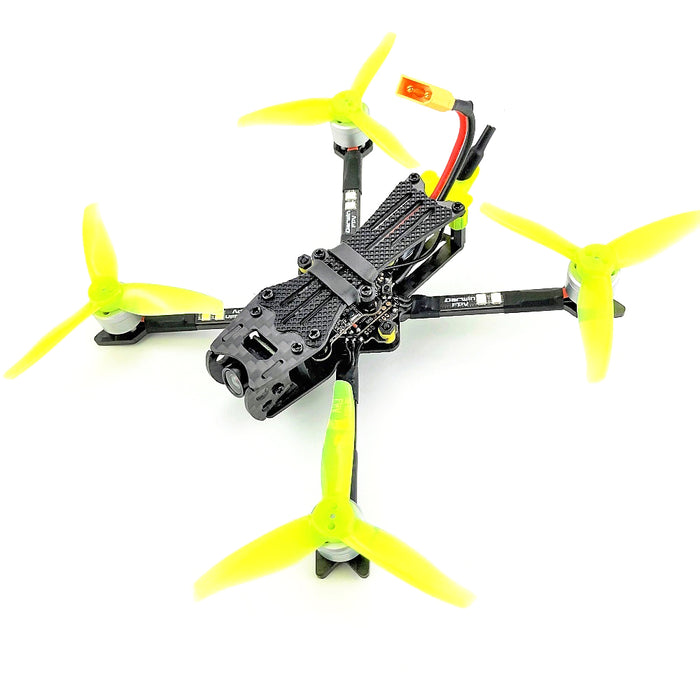

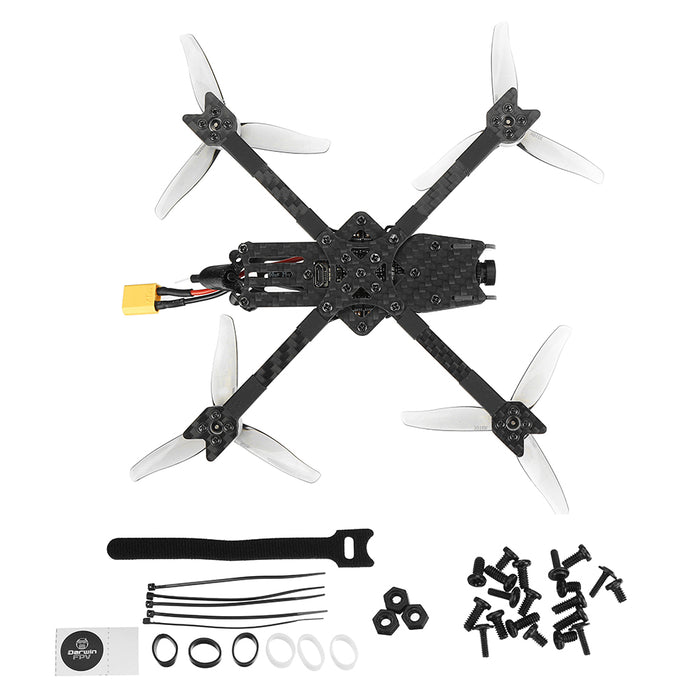

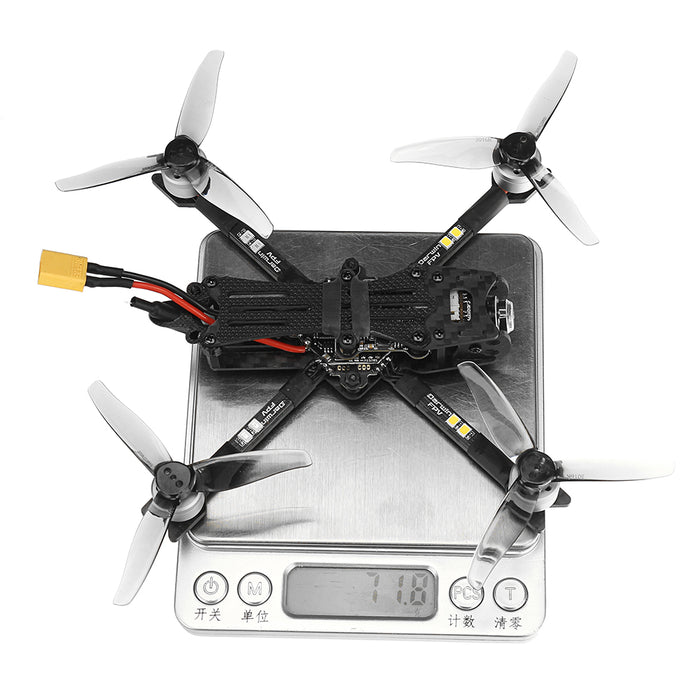

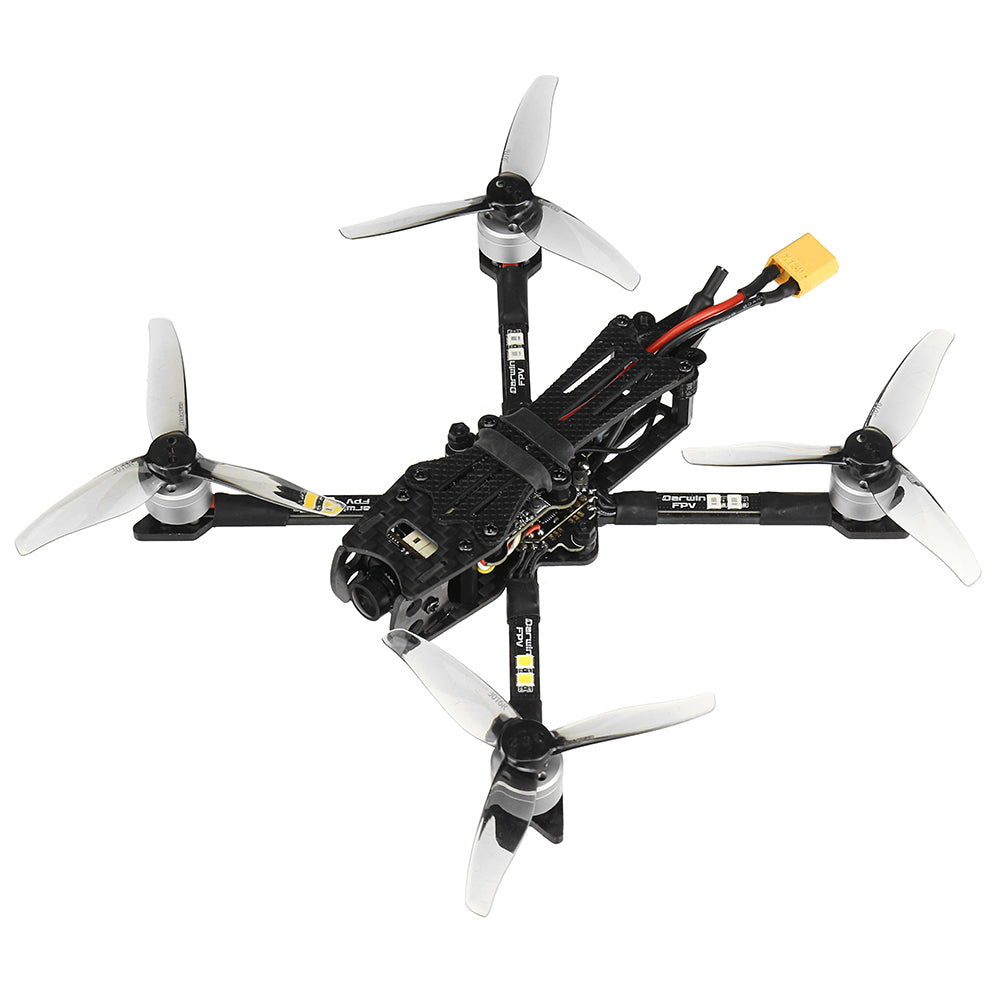

Product Images
